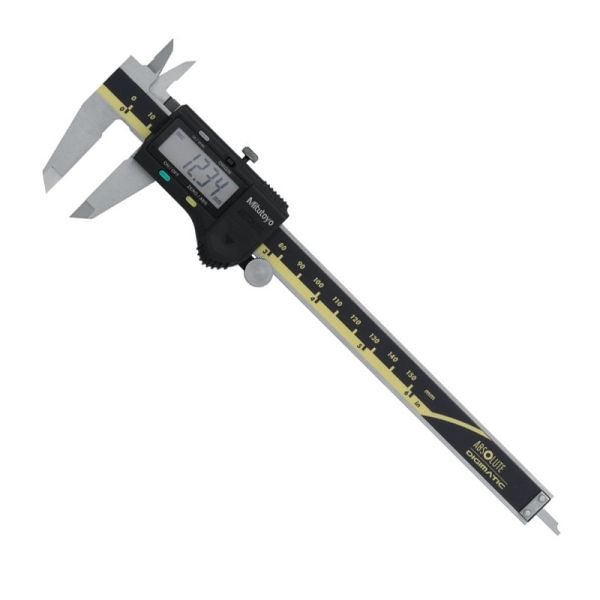

Mitutoyo Digimatic Caliper 0-150mm (6″)

SKU
G3-103-E
Link Copied to Clipboard
$194.75
  • Brand: Mitutoyo
  • Product: Digimatic Caliper
  • Opening Dimensions: 0 - 150mm (6")
  • Country of Origin: Japan
Link Copied to Clipboard
Priced individually
Qty Price Per Unit
1-2 $194.75
3 and Above $168.50

ABSOLUTE Digimatic Caliper with Exclusive ABSOLUTE Encode Technology

Main features...

  • Large and clear LCD readout
  • The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
  • Data Hold Unit (959143) is optional
  • Carbide-tipped jaw type calipers are also available with thumb roller, except 500-500-10, 500-501-10,500-502-10
  • Supplied in a fitted plastic case, except 1000mm / 40” which is supplied in a wooden case

Technical Data...

  • Accuracy: Refer to the list of specifications
  • Resolution: 0.01mm or .0005"/0.01mm
  • Repeatability: 0.01mm / .0005”
  • Display: LCD
  • Length standard: ABSOLUTE electrostatic capacitance type linear encoder
  • Max. response speed: Unlimited
  • Battery: SR44 (1 pc.), 938882
  • Battery life: Approx. 3.5 years under normal use
  • Function Origin-set, Zero-setting, Data output, inch/mm conversion(inch/mm models ONLY)
  • Alarm: Low voltage, Counting value composition error
Packing Qty Priced individually
