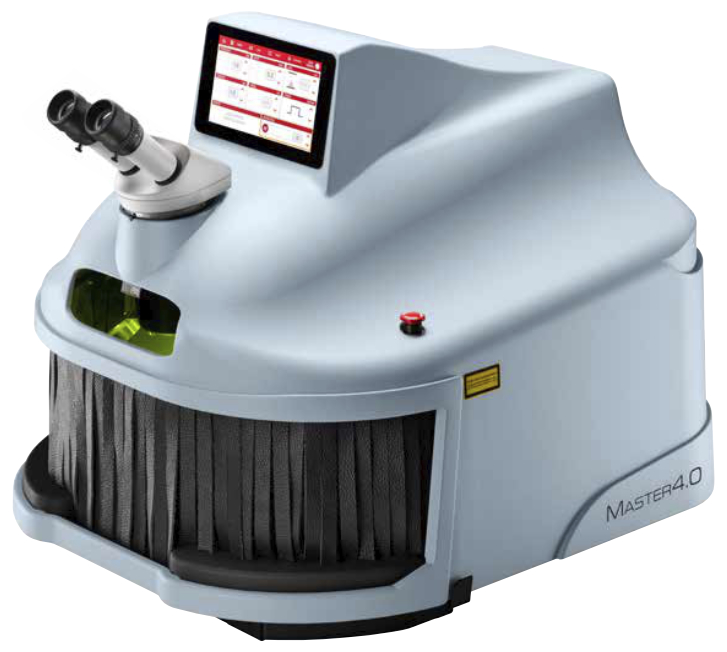

ElettroLaser Master 4.0 165J - Dental and Jewelry Laser Welder

Professional Welding Laser - Mega 4.0

ElettroLaser Master 4.0 inherits all the product innovations of its predecessors, with today’s modern laser technologies. It was developed mainly to satisfy the needs of combining high working power, long lamp life and consistent results!

A large welding chamber, integrated webcam with display of the operations directly on the 7” LCD display, WI-FI connection complete this picture of an innovative welding laser.

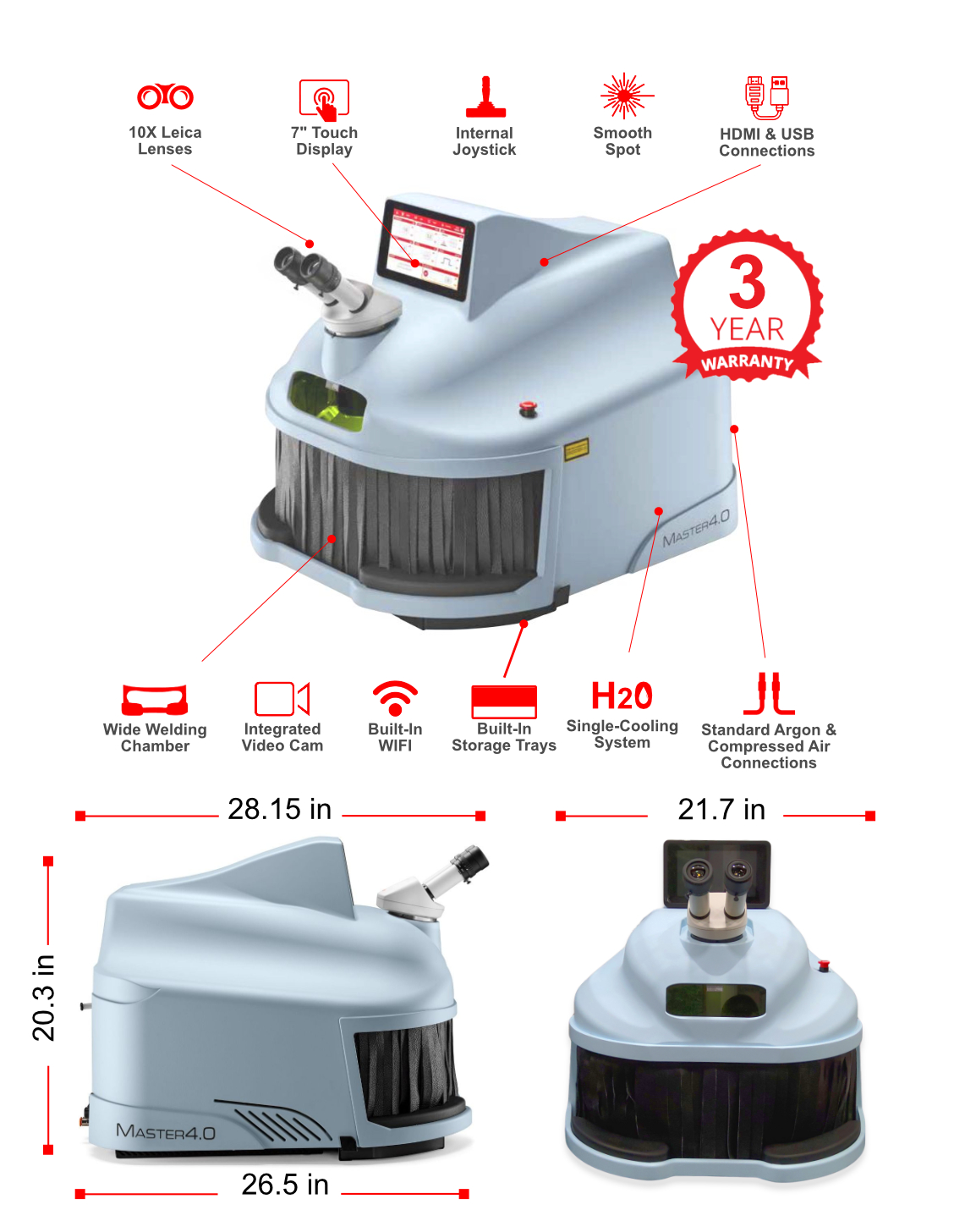

Additional Features

• Internal cooling system eliminates overheating. No refilling required!
• No additional filter replacements required
• Long lasting 8 mm lamp. Produces over 5 million consistent shots
• Stepper motor driven beam-expander for shot spot size repeatability
• 7” LCD external display
• High efficiency chamber LEDs for clear view of work
• Air and Argon inlets to eliminate oxidation during welding
• Camera (standard) with the possibility to record work on a USB stick (optional) or view the working chamber externally on an HDMI device (optional)

Model #	MS 3.5 80J	MS 3.5 165J	Mega 6.0	Mega 6.0 3D
SKU#	LZ-1035	LZ-10135	LZ-6015	LZ-90180
Power Joules	80J	165J	255J	255J
Pulse  Length	0.1 to 12 ms	0.1 to 25 ms	0.1 to 25 ms	0.1 to 25 ms
Pulse Frequency	0.5 to 6 Hz	0.5 to 20 Hz	0.5 to 40 Hz	0.5 to 40 Hz (0.1 opt.) Smooth Spot
Spot Diameter	0.2 to 2.0mm	0.2 to 2.0mm	0.1 to 2.0mm	0.3 to 2.0 mm
Laser Source & Wave Length	1064 nm	1064 nm	1064 nm	1064 nm
Average Power	30W	75W	100W	100W
Maximum Peak Power	4 W	6.5 kW	11 kW	11 kW
Cooling System	Single Fan	Single Fan	Double Fan	Double Fan
