Indutherm MU Series Melting Machines


SKU
78-1200 / 78-1400 / 78-1700 / 78-1025 / 78-1035

  • Model: MU 200
  • Brand: Indutherm
  • Power: 3.5kW (230V) or 6.0kW (3x400V)
  • Temperature Max: 1300°C or 1500°C
  • Crucible Volume: 155cm = 2.0kg AU 18ct
  • Model: MU 400
  • Brand: Indutherm
  • Power: 10kW
  • Temperature Max: 1500°C
  • Crucible Volume: 400cm = 5.0kg AU 18ct
  • Model: MU 700
  • Brand: Indutherm
  • Power: 12kW
  • Temperature Max: 1500°C
  • Crucible Volume: 700cm = 8.5kg AU 18ct
  • Model: MU 900
  • Brand: Indutherm
  • Power: 15kW
  • Temperature Max : 1500°C
  • Crucible Volume : 900cm = 11kg AU 18ct
  • Model: MU 1200
  • Brand: Indutherm
  • Power: 15kW
  • Temperature Max: 1500°C
  • Crucible Volume: 1,200cm = 14.5kg AU 18ct


QuantityPrice
1 to 1 Request a Quote
Priced individually

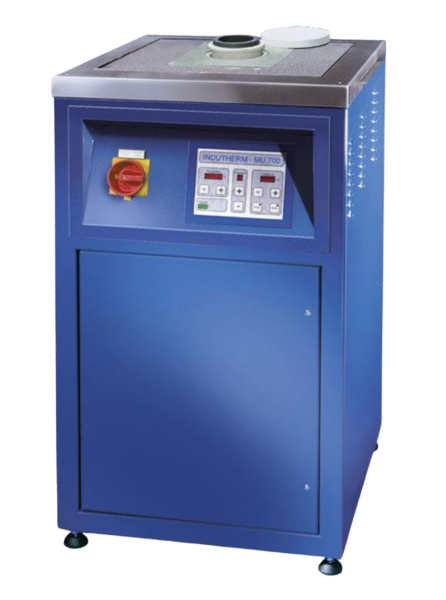

Indutherm MU Series Melting Machines
Indutherm MU Series Melting Machines

Melting machines for hand pouring and recycling

With the MU series, we offer melting machines for many different needs and with crucible casting capacities from 155ccm up to 1,200ccm. The material is molten in open crucibles and poured by hand into the casting mold or ingot mold.

Melting Units MU Series

Flexible melting furnaces designed to melt gold and silver alloys as well as aluminum, bronze, and brass. Due to the strong induction generator and the low induction frequency, the stirring effect of the metal is excellent.

Major Applications

  • Quick melting of metal in small or bigger quantities

  • Melting of pellets for metal analysis

  • Melting of platinum blanks for rolling processes

Main Benefits

  • Easy to handle

  • Quick change of crucibles

  • Compact design


*Note: These items are heavy, so they need to be shipped by a freight truck. A customer service representative will contact you about your order.



MU 200
(78-1200)

MU 400
(78-1400)

MU 700
(78-1700)

MU 900
(78-1900)

MU 1200
(78-12000)

Power Max. / Electrical Connection 3.5kW (230V) or 6.0kW (3x400V) 10kW 12kW 15kW 15kW
Maximum Temperature 1300°C or 1500°C 1500°C 1500°C 1500°C 1500°C
Crucible Volume 155cm = 2.0kg AU 18ct 400cm = 5.0kg AU 18ct 700cm = 8.5kg AU 18ct 900cm = 11kg AU 18ct 1,200cm = 14.5kg AU 18ct
Temp. Measured By Thermocouple Standard Equipment Standard Equipment Standard Equipment Standard Equipment Standard Equipment
Temperature Control Standard Equipment Standard Equipment Standard Equipment Standard Equipment Standard Equipment
Temperature Programs 20 20 20 20 20
Interface R2 232 Diagnostic System Standard Equipment Standard Equipment Standard Equipment Standard Equipment Standard Equipment
GSM Modem For Remote Control Optional Optional Optional Optional Optional

Product Manual
