Romanoff RCS LITE 4 kW Platinum & Gold Centrifugal Casting Machine

SKU
79-7100
Link Copied to Clipboard
$28,037.00
Specifications
Brand Romanoff
Model RCS Lite 4 KW&
Power 4 kW Induction Generator
Voltage 220 V Single-Phase
Amperage 30 A
Max Temperature(Melting) 2000°C
Training Technical Training & After Sales Support Included
Features Rotating Coil, Optical Pyrometer, Built-in Vacuum Pump & Water Tank Recirculator
Crucible Capacity 200 g Platinum (50 g Pt Min), 170 g Gold
Maximum Flask Capacity 3 x 2.75 in (80 x 70 mm)
Machine Dimensions 25.2 x 26.4 x 41.3 in
(64 x 67 x 105 cm)
Uncrated Weight 342 lb (155 kg)

Automatic Temperature Control


Link Copied to Clipboard
Priced individually

Achieve unparalleled casting results with the Romanoff RCS 4kw Centrifugal Casting Machine, designed for superior performance in casting all precious metals and related alloys within a vacuum-controlled atmosphere and precise temperature management.


Key Features:

Rotating Coil System (RCS): Ensures excellent casting results by keeping the metal under consistent heat while transitioning from the crucible to the flasks. This prevents rapid metal cool down and ensures casting at the lowest temperature possible, reducing the risk of hot metal mold reactions and surface porosity.

High Melting Efficiency and Speed: Capable of casting up to 12 samples per hour, the RCS system is designed for high productivity and superior quality.

Advanced Temperature Control: The fully automatic model (79-700) features an optional Dual Color Infrared Pyrometer (79-700-DP) that compensates for emissivity variations, ensuring precise casting temperature control for metals with fluctuating emissivity.

Digital Controls: Modern digital controls with self-diagnostic features, multiple user programs, and programmable parameters such as power level, rotation speed, acceleration, melting temperature, and holding time.

Vacuum and Inert Gas Atmosphere: The machine backfills with a protective inert gas after vacuuming, ensuring a controlled environment during the melting process.

Optical Pyrometer: Provides accurate temperature readings for precise control.

Versatile Casting Capabilities: Suitable for low-temperature metals like gold and silver, and high-temperature metals like platinum and stainless steel, with a maximum temperature of up to 2000°C. Special programs are available for titanium casting.

Integrated Cooling System: Includes a built-in fresh water cooling system and vacuum pump, with an optional external chiller for continuous operation.


Benefits:

  • Energy Efficiency: Enhanced energy efficiency compared to traditional resistance or flame heating methods.
  • High Quality and Repeatability: The RCS system ensures consistent quality results with optimal mixing of the melt provided by the induction heating field.
  • Increased Productivity: Rapid melting and sample casting capabilities improve overall productivity.
  • Easy Operation and Maintenance: The compact, reliable system is CE certified with integrated safety features, making it easy to install, operate, and maintain.
  • Safety: Designed for safe operation at increased temperatures, the system includes self-diagnostic warnings for water pressure, power levels, and crucible replacement needs.

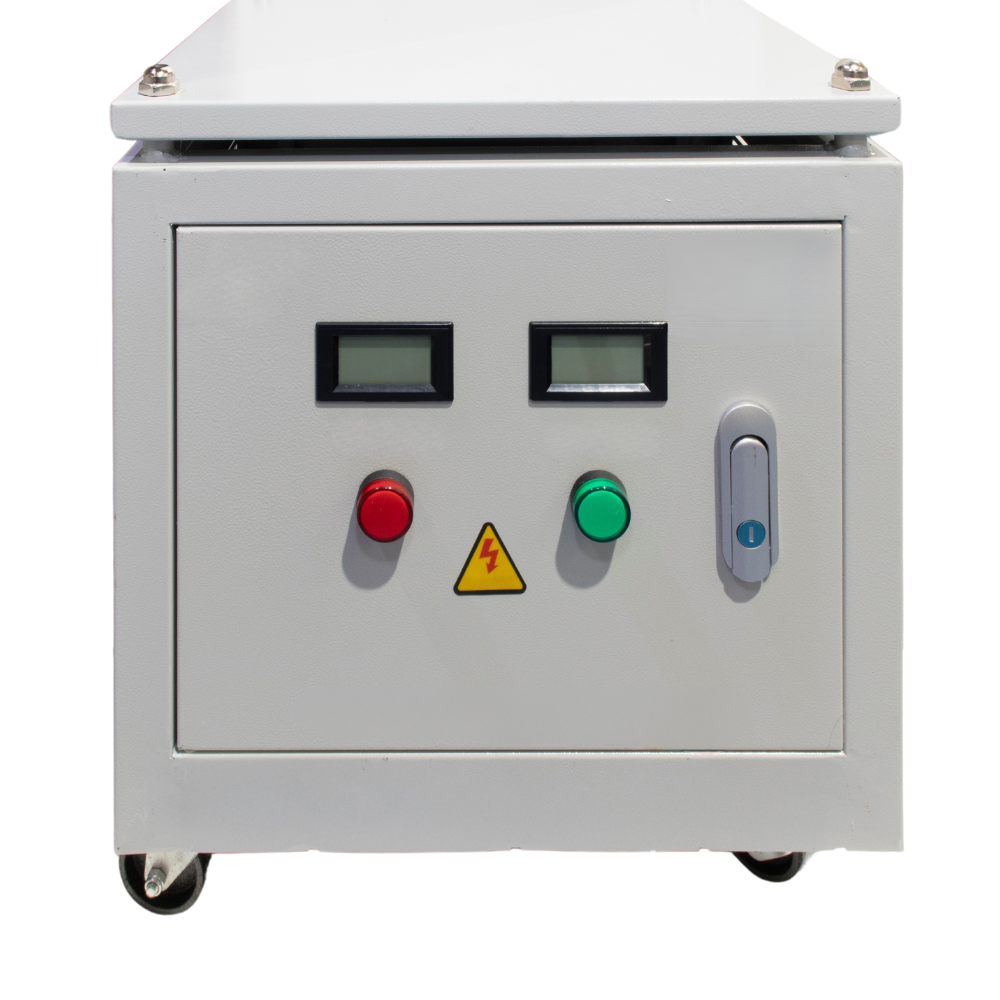

Flashforge Step Up 110/220 Transformer

Key Features:
  • Voltage Conversion:
    Primary Voltage: 110V
    Secondary Voltage: 220V

  • Power Capacity:
    Rated at 10 kVA, making it suitable for mid-range electrical applications, machinery, and equipment.

  • Frequency Compatibility:
    Designed to operate at both 50Hz and 60Hz, supporting a wide range of global power standards.

  • Insulation Class:
    Built with Class F insulation, ensuring thermal protection and a maximum operating temperature of up to 155°C, enhancing the longevity and safety of the transformer.

  • Dry-Type Construction:
    No oil or liquid coolants required – offers low maintenance, enhanced safety, and eco-friendly operation. Ideal for indoor installations where clean and safe power distribution is critical.

  • Applications:
    Perfect for use in industrial automation, laboratory equipment, control systems, and any environment where voltage transformation from 110V to 220V is necessary.



   Romanoff RCS LITE 4 kW Platinum & Gold Centrifugal Casting Machine  Romanoff RCS Platinum & Gold 5kw Automatic Centrifugal Casting Machine  Romanoff CCM Large Centrifugal Platinum & Gold Casting Machines  Romanoff CCM Large Centrifugal Platinum & Gold Casting Machines
Specs. Romanoff RCS LITE 5 kW
Platinum & Gold
RCS 4kW
(Rotating Coil System)
CCM D1 100 & CCM
(Centrifugal Casting Machine)
CCM D2 200
(Centrifugal Casting Machine)
Sku #
79-700 79-7100 79-500-D1 79-500-D2
Power (max) 5.0 kW 4.0 kW 7.5 kW 7.5 kW
AC Line, (50/60Hz)
1 Phase
230 ±10% 230 ±10% 400 V ±10%
230 V ±10% (optional)
400 V ±10%
230 V ±10% (optional)
Melting Temp.(max) 2000 °C 2000 °C 2000 °C 2000 °C
Crucible Capacity 200g Platinum
(50g Pt Min)
170g Gold
200g Platinum
(50g Pt Min)
170g Gold
350g Pt (90g Pt min)
290g Au
750g Pt (190g Pt min)
650g Au
Crucible Volume Gold: 44 mm (SKU: 79-702)
Platinum: 44 mm (SKU: 79-701-LG)
Gold: 44 mm (SKU: 79-702)
Platinum: 44 mm (SKU: 79-701-LG)
Gold: 51 mm (SKU:79-452)
Platinum: 51 mm
(SKU:78-0060)
Customizable
Flask Size (max), DxH 3.1 x 2.95"
(80mm x 75mm)
3.1 x 2.95"
(80mm x 75mm)
3.9 x 4.7"
(100mm x 120mm)
4.7" x  6.2"
(120mm x 160mm)
Water Cooling System included included included included
Vacuum Pump included included NO NO
Auto-Cast Programs included No Yes Yes
Titanium casting program Yes No Yes Yes
LCD touch control panel Yes No Yes Yes
Weight 342 lbs (155 kg) 385.8 lbs (174.9kg) 551.1 lbs (249.9 kg) 683.4 (309.9 kg)
Machine
Size

LxWxH
25.2” x 26.4” x 41.3”
(640mm x 670mm x 1050mm)
25.2” x 26.4” x 41.3”
(640mm x 670mm x 1050mm)
27.6” x 30” x 43.5”
(701mm x 762mm x 1105mm)
35.8” x 40.6” x 43.5”
(910mm x 1030mm x 1105mm)
Packing Qty Priced individually
