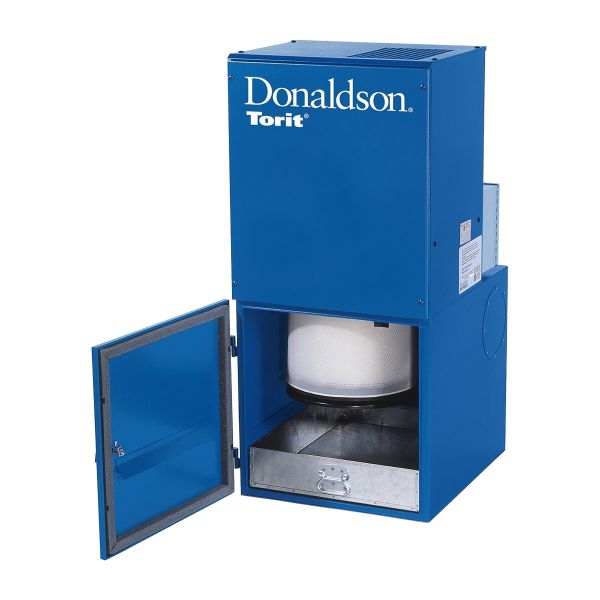

Torit Vibra Shake Dust Collectors


SKU
Z42-011 / Z42-012 / Z42-013 / Z42-014

  • Model : VS-550
  • Nominal Air Flow : 550 CFM
  • Horsepower : 1
  • Dimensions : 24.75" x 30.75" x 52.25"
  • Number of Polishing Heads : 2
  • Sound Level : 490
  • Model : VS-1200
  • Nominal Air Flow : 1200 CFM
  • Horsepower : 3
  • Dimensions : 24.75" x 30.75" x 62.25"
  • Number of Polishing Heads : 4-6
  • Sound Level : 510
    • Model : VS-1500
    • Nominal Air Flow : 1500 CFM
    • Horsepower : 5
    • Dimensions : 24.75" x 30.75" x 68.25"
    • Number of Polishing Heads : 6-8
    • Sound Level : 525
    • Model : VS-3000
    • Nominal Air Flow : 3000 CFM
    • Horsepower : 7.5
    • Dimensions : 51-3/8" x 33" x 75.25"
    • Number of Polishing Heads : 10-12
    • Sound Level : 1050





A self-cleaning collector for intermittent applications where high collection efficiency is essential, such as reclaiming precious metals

  • Two-stage cartridge for high-efficiency filtration on both coarse and fine dusts
  • Compact, self-contained collector design allows placement flexibility and saves floor space
  • Preassembled for easy, low-cost installation - no need for compressed air
  • Selection of inlet size and location for installation flexibility
  • Recirculates filtered air, saving heating and cooling costs

Vibra Shake cartridge filter features patented Pleatloc corrugation that assures uniform pleat spacing for better self-cleaning and longer filter life

  • Filter screen capture coarse and fibrous particles
  • Submicron particulates pass through the filter screen and are trapped by the inner layer of media
  • Galvanized outer liner protects filter media
  • Easy filter changeout for quicker maintenance
  • All units operate on standard 208/220V 3-phase 60 cycle
  • Alternate voltages, phase and cycle are available upon special order
  • Model VS-3000 has two VS-1500 filters
  • Motor starters are required for all models, P/N Z42-009-CB


Torit Vibra Shake Dust Collector
(Z42-011)

Torit Vibra Shake Dust Collector
(Z42-012)

Torit Vibra Shake Dust Collector
(Z42-013)

Torit Vibra Shake Dust Collector
(Z42-014)

Model Number VS-550 VS-1200 VS-1500 VS-3000
Nominal Air Flow 550 CFM 1200 CFM 1500 CFM 3000 CFM
Horsepower 1 3 5 7.5
Dimensions 24.75" x 30.75" x 52.25" 24.75" x 30.75" x 62.25" 24.75" x 30.75" x 68.25" 51-3/8" x 33" x 75.25"
Number Of Polishing Heads 2 4 - 6 6 - 8 10 - 12
Sound Level dB(A) 490 510 525 1050
