Indutherm VTC Series Vacuum Tilt Casting Machines
The VTC 100V, 200V, 400V and VTC 800V are extremely versatile casting machines suitable for a wide range of applications – and a number of options that were considered mutually incompatible up to now. Thus, while the VTC series was originally designed as a high-temperature casting machine for casting steel, palladium, platinum etc. (max. 2,000° C), large flasks also make it suitable for economically producing castings in gold, silver, copper, aluminum and other materials. We also have available the Reactive Models, that are capable of melting and pouring Titanium.
|1 to 1||Request Pricing|
The VTC series: for every metal or alloy you want to cast
The VTC 100V - VTC 800V are extremely versatile casting machines suitable for a wide range of applications – and a number of options that were considered mutually incompatible up to now. Thus, while the VTC series was originally designed as a high-temperature casting machine for casting steel, palladium, platinum etc. (max. 2,000° C), large flasks also make it suitable for economically producing castings in gold, silver, copper, aluminum and other materials.
The machine combines a dual-chamber differential pressure system with a tilting mechanism. The casting process is achieved by rotating the entire melting-casting unit by 90°. One benefit of the tilting system is the use of economically priced graphite or ceramic crucibles (without holes and sealing rods), these tend to have a longer service life. Some alloys, such as copper beryllium, quickly cause crucibles with holes and sealing rods to become loose and therefore useless, and for this reason, many casters have so far processed such alloys only in open systems – which means they can't choose to optimize the process with overpressure or vacuum. With the VTC series, these handicaps no longer apply. A vacuum can be produced in the melting chamber and the casting chamber to avoid oxidation processes during melting and air pockets in the casting mould. The flask is automatically pressed against the melting chamber for casting, this makes it possible to switch to overpressure during casting for better mould filling; in addition, the vibration technology optimizes the process even further. As well as casting with flasks, casting into ingot moulds is also possible.
New sweep mode vibration system for perfect results even in Pt and Pd
Due to the advanced vibration technology working with variable frequencies and the sophisticated vacuum/pressure system, this machine is perfectly suited to casting platinum and palladium – and all this without the elaborate and sensitive centrifugal mechanism usually required for platinum casting machines
New generator system controlled via LCD display
A completely new generation of generator and control systems is present in the VTC series. Operation is simple and safe thanks to a clearly arranged and easy-to-use LCD display. All parameters, right down to the variable tilting speed, can be individually set and saved to ensure that recurring castings always produce consistent results.
*NEW* VTC 100 - 800 V Ti high vacuum casting machines
Highly reactive metals such as titanium pose particular challenges when casting. The atmospheric conditions in a 'normal' vacuum pressure casting machine are completely inadequate for smelting and casting titanium, and the crucibles and moulds need to be made of specific materials. Hence until now the only way to cast titanium was to use extremely expensive specialized machines. As part of a joint AiF ZIM research project, Indutherm has collaborated with FEM (Schwaebisch Gmuend) under the sponsorship of the Federal Ministry for Economics and Technology (Bundesministeriums für Wirtschaft und Technologie - BMWi) to develop a cost-effective solution for casting highly reactive metals. The ideal structural basis proved to be the VTC 200 V tilting casting machine. Following numerous modifications, such as completely reconstructed valves and hose connections, special seals and an evacuation and inert gas flushing process tailored to the machine, the prerequisites for the required vacuum of 10-7 bar were met. Furthermore, special crucibles and inductors were developed for the Ti versions, as the ceramic crucibles that are normally used also react with titanium to varying degrees. The new materials also reduce smelting times - and the shorter the smelting time, the less time there is for a possible reaction.
Every model in the VTC range from the VTC 100 V to the VTC 800 V is available in a Ti version.
Note: The VTC V Ti machines are not only suitable for casting titanium - they can also be used for any highly reactive metal or alloy, such as copper, beryllium, etc.

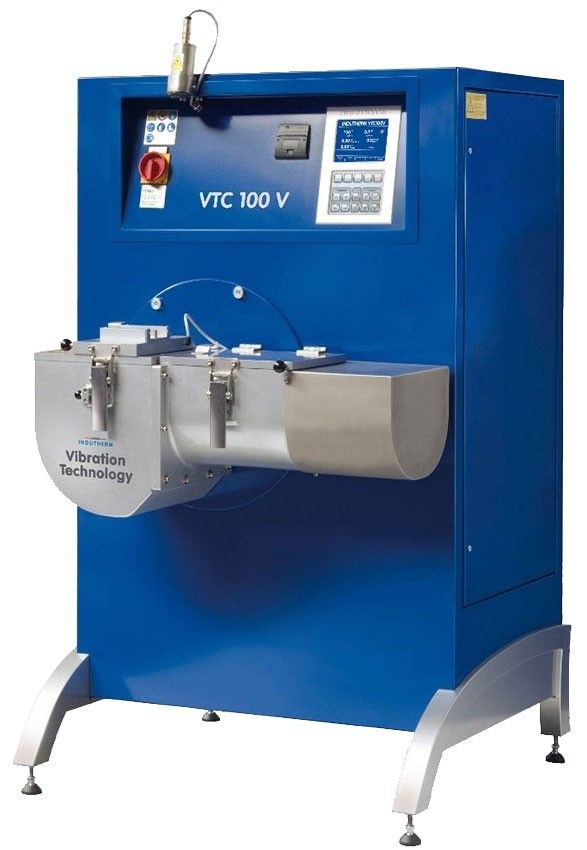

VTC 100V (Ti)

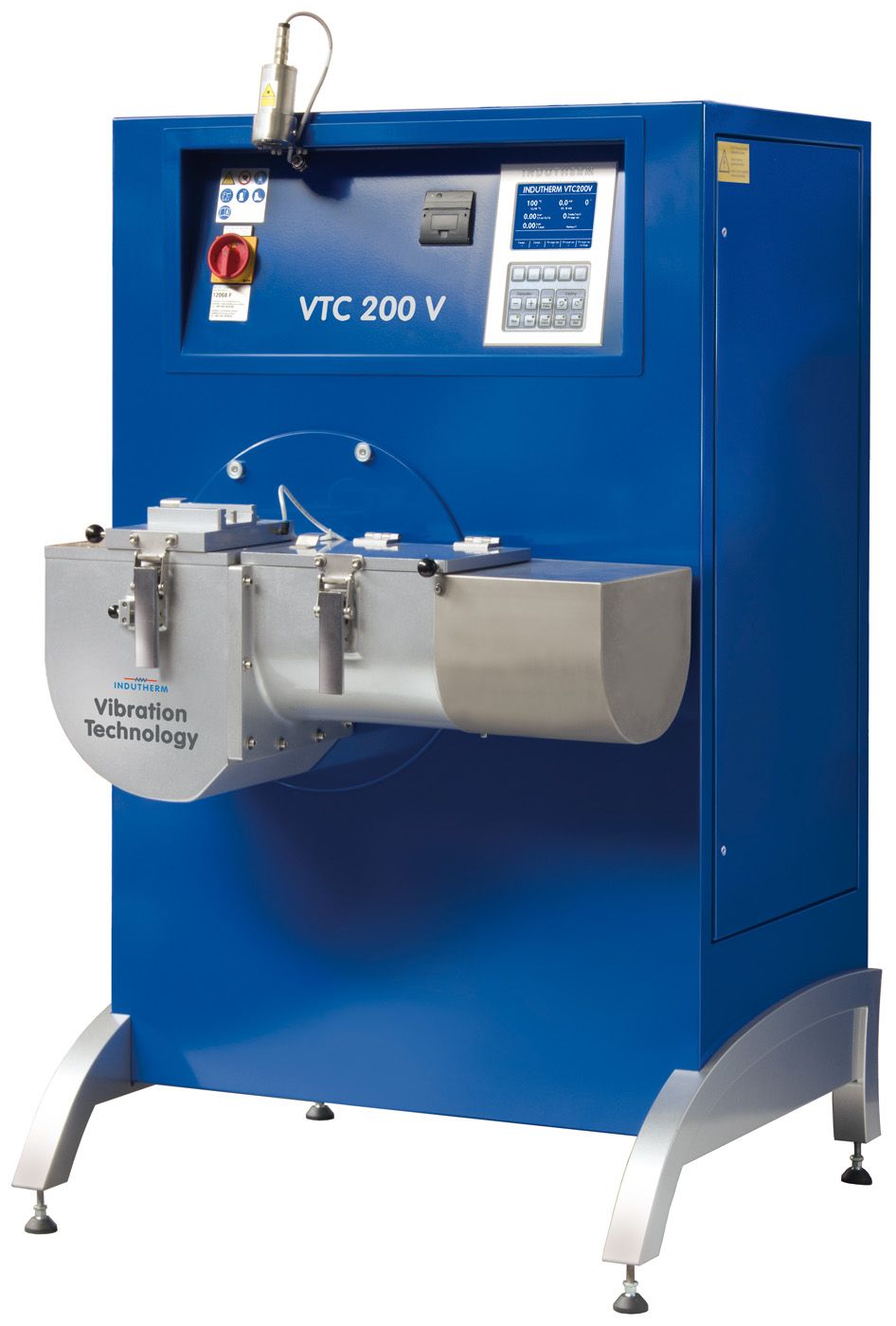

VTC 200V (Ti)
VTC 400V (Ti)
VTC 800V (Ti)
|Power Max. / Electrical Connection||12 kW / 3x400V||15 kW / 3x400V||20 kW / 3x400V||20 kW / 3x400V|
|Graphite Crucible Volume||25 ccm = 450 g Au 18 ct||145 ccm = 2.0 kg Au 18 ct||300 ccm = 2.5 kg Cu||600 ccm = 4.0 kg Cu|
|Ceramic Crucible Volume||30 ccm = 600 g Pt / 250 g steel / (95gr Ti)||180 ccm = 2.5 kg Pt / 1 kg steel / (450gr Ti)||300 ccm = 2.0 kg steel / (900gr Ti)||600 ccm = 4.0 kg steel / (1800gr Ti)|
|Maximum Flask Capacity||125mm DIA x 220mm H||125mm DIA x 220mm H||125mm DIA x 220mm H||125mm DIA x 220mm H|
|Vibration Technology||Standard Equipment - Sweep Mode||Standard Equipment - Sweep Mode||Standard Equipment - Sweep Mode||Standard Equipment - Sweep Mode|
|Automatic Tilting With Motor Drive||Standard Equipment||Standard Equipment||Standard Equipment||Standard Equipment|
|Automatic Flask Fixing||Standard Equipment||Standard Equipment||Standard Equipment||Standard Equipment|
|Thermocouple Temperature Measurements||Up To 1300°C||Up To 1300°C||Up To 1300°C||Up To 1300°C|
|Optical Pyrometer Temperature Measurements||Up To 2000°C||Up To 2000°C||Up To 2000°C||Up To 2000°C|
|RS 232 Diagnostic System||Standard Equipment||Standard Equipment||Standard Equipment||Standard Equipment|
|Data Printer||Standard Equipment||Standard Equipment||Standard Equipment||Standard Equipment|
|GSM Modem For Remote Service||Standard Equipment||Standard Equipment||Standard Equipment||Standard Equipment|
|Pyrometer With Video Output||Optional Equipment||Optional Equipment||Optional Equipment||Optional Equipment|
|Weight||150 Kg||150 Kg||150 Kg||150 Kg|
|Dimensions (WxDxH)||700mm x 800mm x 1500mm||700mm x 800mm x 1500mm||700mm x 800mm x 1500mm||700mm x 800mm x 1500mm|
