Yasui K2 Next 5 KW - Gold Casting Machine

SKU
79-300-K24.8KW
Link Copied to Clipboard
$0.00
Specifications
Brand Yasui
Power AC 380V +/-10% 50/60
three-phase, 11.5 kVA
Max. Temp (K-Type) 1200°C
Max. Temp (R-Type) 1450°C
Standard Flask Size (D x H) 125 x 230 mm
Optional Flask Size (D x H) 125 x 300 mm
Single Gas Argon
Oscillation 4.8 KW
Link Copied to Clipboard
Priced Individually

K2 NEXT – Vacuum Pressure Casting Machine: Your NEXT Machine

Advantages of K2 NEXT

NEXT vacuum pressure machine by YASUI is your next machine to create quality.

  • After mode without oxidation
  • Variable heat for gold loss
  • Extra mixing for good segregation of gold
  • Good melting speed
  • De-Gas – with good filling pieces
  • Precise double-needle gauge with improved pressure sensing
  • Easy to maintain
  • Accurate pressure timing
  • Self-diagnosis – P.I.D auto-tuning
  • Memory of parameter for best casting

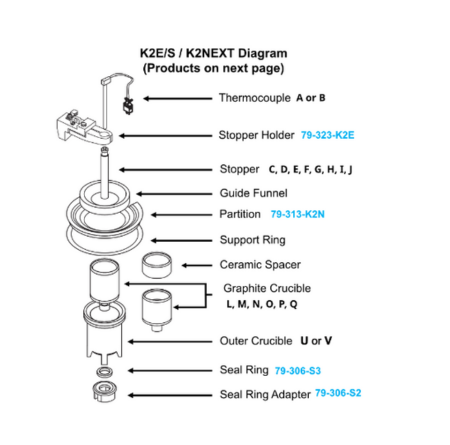

Spare Parts Lists


ITEM #

DESCRIPTION


79-302-K2

A. K-Type up to 1200°C


79-302-k2-R

B. R-Type up to 1450°C


 79-304-K3S

 C. K3&K3S FLAT Y


 79-304-K2-N

D. K3 & K2 5KW (A-D) NEW DESIGN Y


 79-304-k2-R

 E. K3 &K2- 5KW(A-D) Style A


 79-304-K2-NR

 F. K3&K2-5KW(A-D) NEW DESIGN STYLE I





Yasui Logo  Yasui K3 UP Gold Casting Machine  Yasui K3 UP Gold Casting Machine  Yasui K3 UP Gold Casting Machine
Specification K3 UP K2 NEXT 8K K2 NEXT 16K
SKU#
79-300-K3UP 79-300-K2-5KW 79-300-K2-10
Casting System Vacuum Pressure
max. pressure 0.3 MPa
Vacuum Pressure
max. pressure 0.3MPa with internal gas tank
Program Memory 100 memories
Control Specially designed microprocessor control. Temperature control by PID with an accuracy of +/-2 degrees centigrade.
Oscillation Power 4 kW 8 kW 10 kW
Cooling Water Tap water direct cooling system more than 3L/min, more than 0.15 MPa, less than 30ºC Tap water direct cooling system more than 3L/min, more than 1.5 kgf / cm2, less than 30ºC Tap water direct cooling system more than 3L/min, more than 1.5 kgf / cm2, less than 30ºC
Max. Flask Size (D x H) 125 x 230 mm Standard:125 x 230 mm
Optional: 125 x 300 mm
Max. Casting Amount (Volume) 90 cc 150 cc
Max. Casting Amount (Weight) 24 K: 1.2 Kg, 18 K: 0.9 Kg, 14 K: 840 g, 925 Ag: 600 g
Max. Temp 1200ºC 1200ºC (K-Type)
1450ºC (R-Type)
Power Source AC 380 V +/-10%,
50/60 Hz 3 phase,
5.5 KVA

380 V +/-10%,
50/60 Hz 3 phase,
11.5 KVA
Net Weight Approx. 418 lbs ( 190 Kg) Approx. 551.1 lbs (250 Kg)
Packing Qty Priced Individually
