ElettroLaser FiberLux NANO: Compact Laser Engraver - 60W

SKU

RE-3060

Skip to the beginning of the images gallery

$18,795.00


Specifications
Brand:	ElettroLaser
Model	FiberLux Nano
Wattage	60 W
Power Supply	230 V 50/60 Hz - 1 kW (110 V on request)
M²	< 1.8
Work Area (L x D x H)	9.8 x 9.8 x 12.2 in (250 x 250 x 310 mm)
Max Frequency	60 kHz
Weight	77 lbs (35 kg)
Dimensions:	25.6 x 15.4 x 24.7 in (652 x 392 x 629 mm)
Country of Origin:	Italy
Main Features
R-axis for marking rings and bracelets Z-axis with stepped motor controlled by software Remote Installation & Training Includes Technical Support	Pulsed fiber laser Wide working space Double red pointer for positioning objects 2 Year Warranty

Priced individually

Categories: Laser Machines, Engravers

Details

Precision Laser Cutting and Engraving for Precious Metals

Introducing the Fiberlux NANO, a high-quality entry-level laser cutter and engraver designed for all precious metals. In recent years, laser technology has seen significant advancements in both the gold and industrial sectors. This is due to its precision, speed, and low maintenance costs. Elettrolaser's Fiberlux NANO caters to the growing demand from small goldsmith laboratories, offering a compact and affordable laser marking solution.

Advanced Technology for Versatile Applications

The Fiberlux NANO incorporates the research and innovations from the FiberLUX EL and FiberLUX PRO series. This 'mini' model allows users to cut and engrave not only precious metals but also steel, aluminum, titanium, special alloys, and more.

Key Features and Capabilities

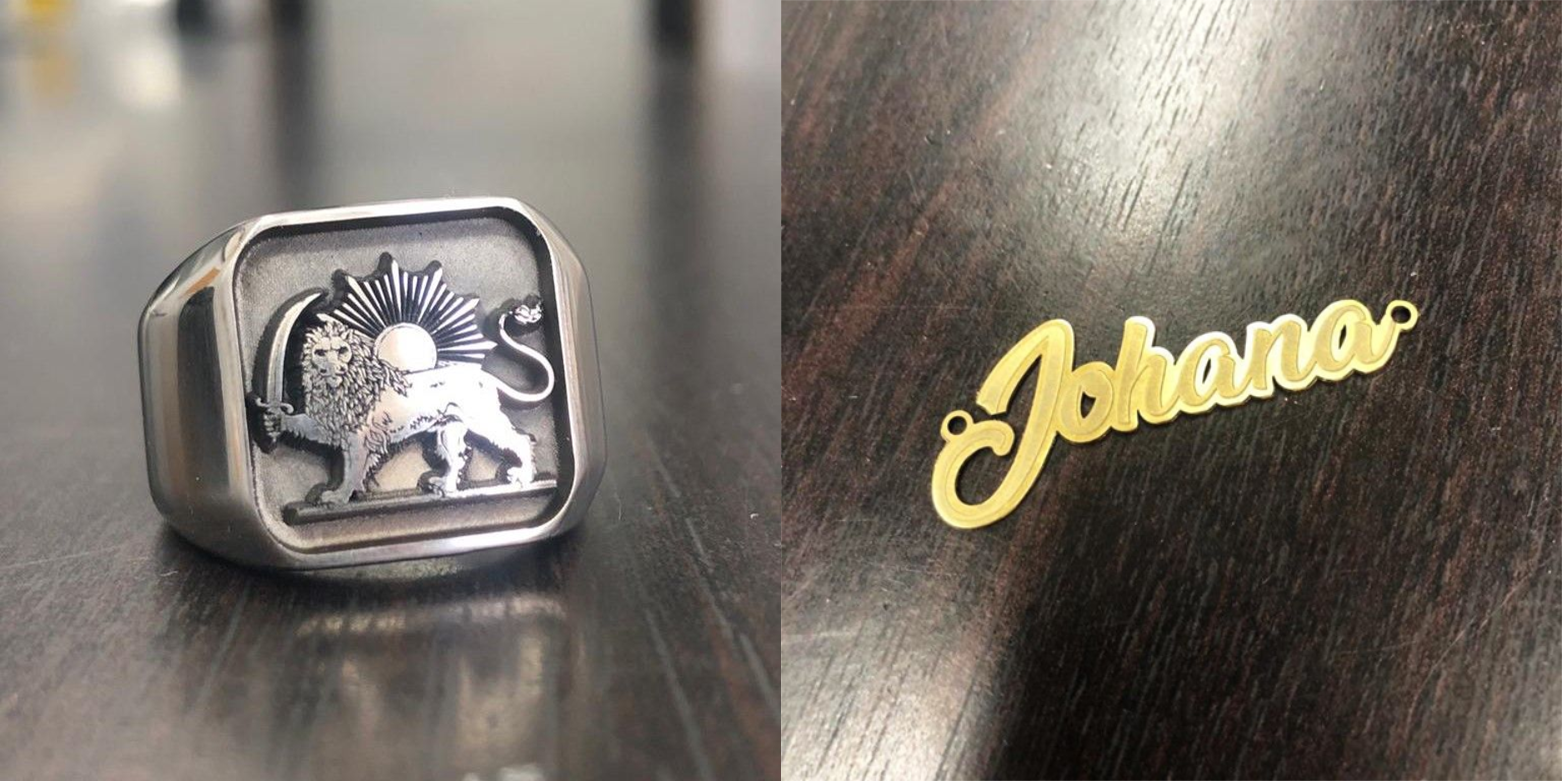

Engraving Versatility: Capable of engraving logos, brands, photo-engraving, texts, graphic designs, and both the inside and outside of rings with the optional high-precision rotary axis system.
Marking Area: Maximum marking area of 160 x 160 mm with resolutions up to 20 μm.
Power Options: Available in 30 W and 60 W models.
Space-Saving Design: Compact and accessible working area with a removable protective cover.
User-Friendly Focus System: Innovative focusing system with overlapping pointers and manual Z-axis adjustment.
Optional Camera: For optimized processing and remote assistance.

Robust Engraving Software

Fiberlux NANO comes with easy-to-use software that imports files from popular computer-design programs (svg, dxf, bmp, plt, jpg, dwg, etc.). There's also a special version available for trademark applications, which allows for title affixing and electronic punching via a USB token.

Optional Accessories

X & Y Clamp: For precise fixing and positioning of pieces.
Rotary Axis System: For engraving inside and outside of rings and more.
Internal Camera: Enhances precision and offers remote assistance capabilities.
Dust Aspirator: Ensures a clean machine and work area.

Jewelry Laser Welder

	Fiberlux Nano		Fiberlux Pro 200	FiberLUX 3D
SKU #	RE-3000	RE-3060	RE-4200	3D-LASER-ENGRAVER
OUTPUT POWER	30W	60W	200W	20-100W
WAVE LENGHT	1064 nm
M²	< 1.8		< 1.4	< 1.6
POWER SUPPLY	230 V 50/60 Hz - 1 kW (110 V on request)
WORK SPACE DIM. (L X D X H)	250 x 250 x 350 mm (9.8 x 9.8 x 12.2 in)
WEIGHT	35 kg (77 lbs.)		130 kg (286 lbs.)	55 - 60 kg (121 - 132 lbs.)
FOCAL 100: AREA / SPOT	60 x 60 mm / 16 um
FOCAL 160: AREA / SPOT	100 x 100 mm / 26 um		110 x 110 mm / 26 um
FOCAL 210: MARKING AREA / SPOT	N/A		160 x 160 mm / 34 um	N/A
SPEED OF GALVO HEAD	5000 mm/s		up to 7000 m/s	6000 mm/s
MAX PULSE ENERGY	up to 1 mJ		up to 1.5 mJ
MAX FREQUENCY	60 kHz		400 kHz	1000 kHz
COOLING SYSTEM	Air Cooled
PULSE DURATION	100 ns at 20 kHz		30 to 100 ns	10 to 200 ns
LASER CLASS	IV		IV / I
FOCUS RANGE IN Z-AXIS WITH 100 MM FOCAL LENSE	N/A			10 mm
FOCUS RANGE IN Z-AXIS WITH 160 MM FOCAL LENSE	N/A			35 mm
