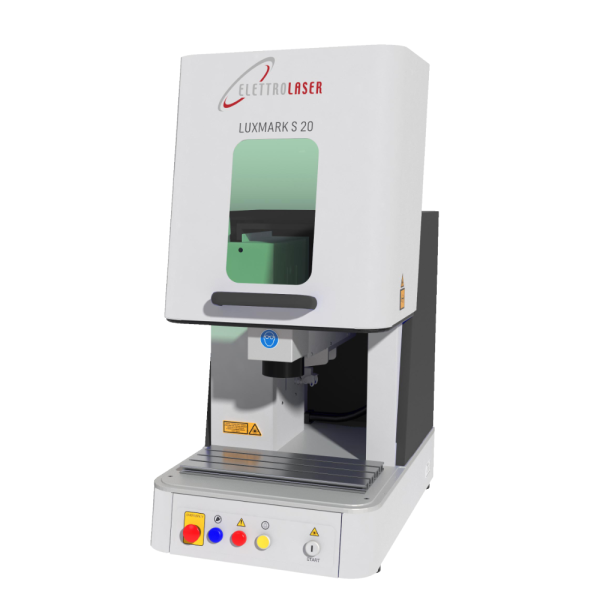

ElettroLaser LUXMARK S - Precision Laser Engraver
SKU
RE-1601
Link Copied to Clipboard
$0.00
| Specifications | |
|---|---|
| Brand | Elettrolaser |
| Application | Precision Laser Engraving |
| Working Area (L x D x H) | 17.7 x 11.2 in (45 x 28.5 cm) |
| Weight | 194 lb (88 Kg) |
| Max Frequency | 4000 kHz |
| Dimensions | 19 x 29.1 x 27.6 in (48.2 x 74 x 70 cm) |
| Country of Origin | Italy |
Priced individually
Categories: Laser Machines, Engravers
The LUXMARK S Series laser engravers support automatic plate cutting and are compatible with all ElettroLaser accessories. They are designed for high-precision marking on small objects, delivering clear and detailed results even on geometrically complex pieces.
These systems are known for their fast operation, user-friendly interface, and broad range of accessories, making them a favorite among operators. With a wide selection of interchangeable laser sources, the S Series is a truly versatile marking solution.
Key Fetures
- Wide-opening door (370 mm)
- Angled door design for improved visibility and operator comfort
- Spacious working area (450 × 285 mm)
- Interior designed for easy metal recovery and cleanliness
- Professional, customizable multilingual software for both operators and companies
- Supports importing files from popular technical and graphic software formats
- Large viewing window for clear internal visibility
- Extended Z-axis travel (185 mm), allowing for future automation integration
- Controlled and precise Z-axis movement for accurate adjustments
| Specifications | |
|---|---|
| POWER | 60 W |
| FREQUENCY | 1 to 4000 kHz |
| FOCALS | F100 (2.4 x 2.4 in / 6 x 6 cm) F160 (3.9 x 3.9 in / 10 x 10 cm) F210 (5.5 x 5.5 in /14 x 14 cm) |
| AXES | 2: Z + R (Optional: X,Y) |
| AXIS TRAVEL | Z: 7.9 in / 20 cm |
| DIMENSIONS | 19 x 29.1 x 27.6 in (48.2 x 74 x 70 cm) |
| WEIGHT | S: 194 lb / 88 Kg |
| WORKING AREA | 17.7 x 11.2 in (45 x 28.5 cm) OPEN DOOR: 14.6 in (37 cm) |
| ENVIRONMENT | COOLING: AIR TEMPERATURE: 50° - 95°F (10° - 35°C) HUMIDITY: 30% - 80% |
| POWER SUPPLY | 1P • N • PE, 230 Vac ± 10%, 50/60 Hz, 0.8 - 1.2 KW * |
| MAX WORKPIECE HEIGHT | 7.1 in / 18 cm (F160) |
| Packing Qty | Priced individually |
|---|
