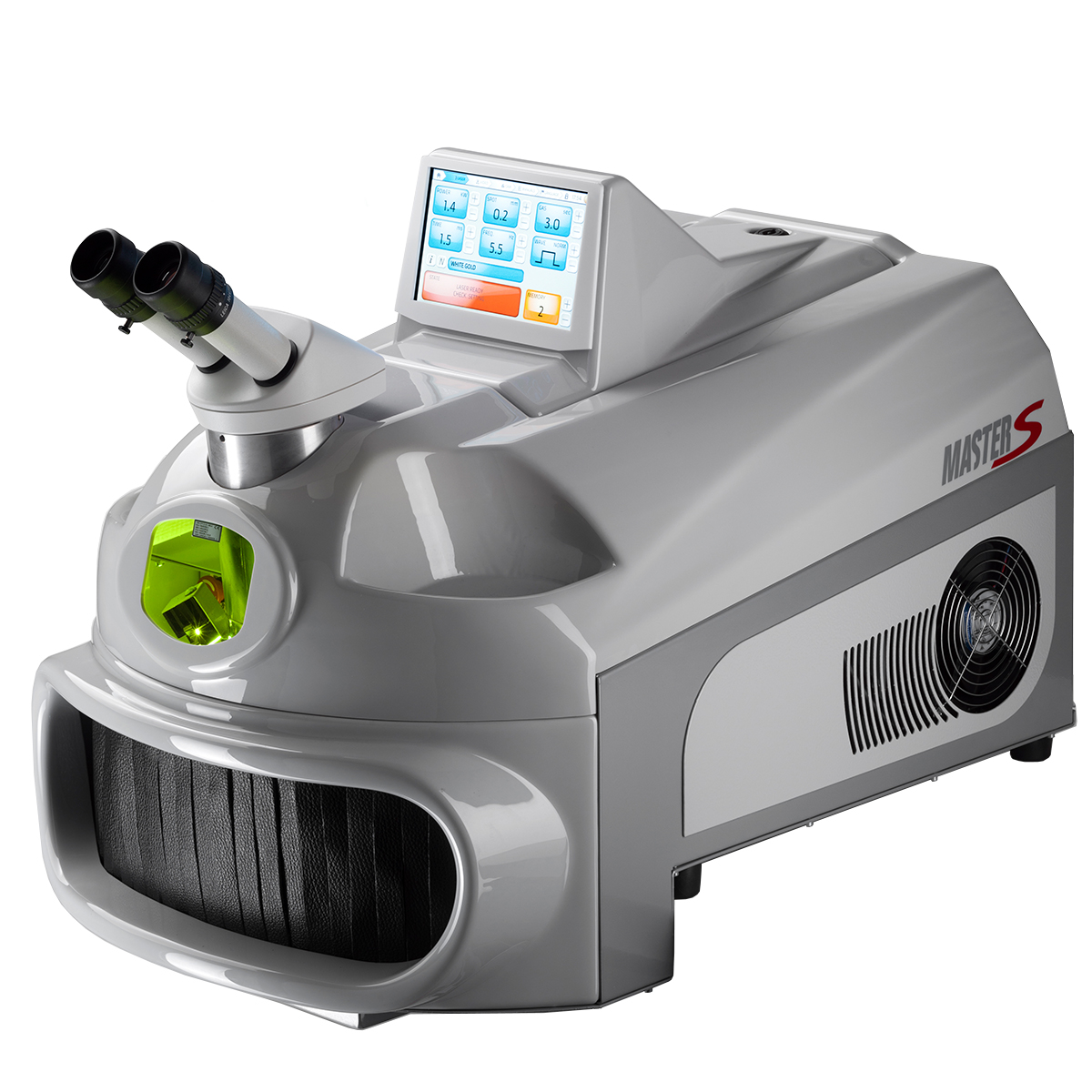

ElettroLaser Master S - 125J Dental and Jewelry Laser Welder (Lightly Used DEMO UNIT)
SKU
LZ-10100-D
Link Copied to Clipboard
$13,780.00
- Brand: ElettroLaser
- Model: Master S,125J,165J
- Power: Standard 110V AC, 50/60 Hz
- Weight: 80lbs
- Country of Origin: Italy
Technical Support and Remote Installation & Training Available
MAIN FEATURES:
- Included 2-Year warranty
- 7 color touch screen display
- 100 memory settings
- Leica 10x stereomicroscope
- LCD shutter with high luminosity
- Joystick inside the welding chamber
- Integrated videocam
- Preloaded tutorials
- Wi-Fi connection
Priced Individually
Categories: Jewelers Tools, Welders, Welders, Deal of the Week
The ElettroLaser Master S inherits all the product innovations of its predecessors, with today’s modern laser technologies. It was developed mainly to satisfy the needs of combining high working power, long lamp life and consistent results!
A large welding chamber, integrated webcam with display of the operations directly on the 7” LCD display, WI-FI connection complete this picture of an innovative welding laser.
Additional Features
- No need to change the water after each use. Once filled with deionized water, the internal cooling system is closed with optical laser resonator, keeping low conductivity and eliminating overheating
- No additional filter replacements required during the life of the laser
- 8mm lamp with a long life, produces over 5 million consistent shots
- The industrial grade 8mm lamp will ensure consistent power throughout the life of the lamp
- Repeatability of shot spot size, thanks to the beam-expander driven by a stepper motor
- The resonator design and fixed mirrors ensure the stability of the beam alignment
- The 7” LCD external display with camera has WI-FI for remote control of parameters
- Chamber with high efficiency LED lights ensure clear vision
- Equipped with Air and Argon inlet to eliminate oxidation during welding
- Ozone sanitizing feature allows you to clean the laser components when there are multiple users (optional)
- Camera (standard) with the possibility to record work on a USB stick (optional) or view the working chamber externally on an HDMI device (optional)
MASTER S 125 | MASTER S 165 | |
LASER SOURCE AND WAVE LENGTH | Nd: YAG 1064 nm | |
AVERAGE POWER | 95 W | 100 W |
PEAK POWER | 5 kW | 6.5 kW |
ENERGY | 125 J | 165 J |
IMPULSE TIME | 0.1 to 25 ms | 0.1 to 25 ms |
PULSE FREQUENCY |
0,5 to 30 Hz
|
|
SPOT DIAMETER | 0,2 to 2,0 mm | |
SPOT SETTING | Motorized, 30 positions | |
WAVE PROGRAMS | Pulse Shaping 6 presets | |
MEMORIES CELL STORED | 100 | |
INTERNAL CHAMBER CONTROL | Joystick | |
EXTERNAL CONTROL | 7'' Color Touch Screen | |
INPUT POWER |
110V AC, 50/60 Hz |
|
AMPERE | 10A | |
TYPE | Desktop |
Packing Qty | Priced Individually |
---|
