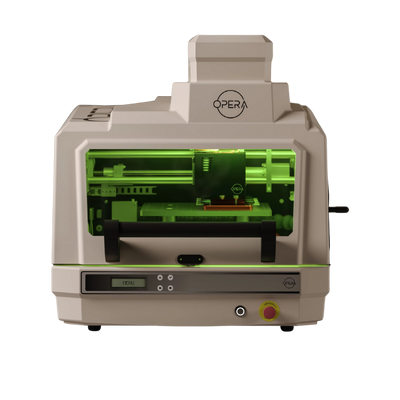

ElettroLaser OPERA - Jewelry Laser Engraving and Milling Machine
Specifications | |
---|---|
Brand | ElettroLaser |
Application | cutting, burnishing, diamond effect cutting, and engraving |
Max Marking Area | 100 × 100 mm (150×150 mm with rotating table and moving scan head) |
Max CNC Area | 200 × 140 mm |
CNC Resolution | 0.0125 mm (XY) / 0.000625 mm (Z) |
Cooling System | Air cooled |
Power Supply | 110 / 240 V AC - 50/60 Hz - 250 W |
Dimensions (L x W x H) | 27.6 × 22.8 × 23.2 in (700 × 580 × 590 mm) |
Weight | 132.3 lbs / 60 kg |
Country of Origin | Italy |
much more than just a marking machine
Opera is the first of its kind and is much more than a simple marking tool. It's a unique fusion of technologies to open up the creative space in the jewelry industry.
This new breed of engraver / cutter machine combines the impact of CNC with the versatility of laser technology, facilitating new unique design opprotunities by incoperating cutting, marking, burnishing, diamond effect cutting, and engraving all in one sleek and compact package.
Maximized Operational Efficiency
With its CNC-laser combination, Opera optimizes time, space, and precision within your workshop, allowing you to create complete designs in a single workspace with one control system.
Extended Workspace
With an extended working area up to 150mm x 200mm, Opera provides ample space for your creativity without chip dispersion or risks of deformation due to heat.
Easy Use and Access
Designed to maximize productivity and ease of use, Opera has dedicated space for all necessary tools, keeping them organized and easily accessible.
Intuitive Software
Equipped with Opera Easy Creator software, this machine offers intuitive control and a design library to easily create unique and original objects, for both beginners and experts.
Unique Combination for Limitless Creativity
The innovative combination of laser and CNC processing represents a true boost for creativity, allowing for experimentation and the creation of unique and stunning designs.
Complete Accessory Kit
With a full accessory kit, including a rotary device for engravings and a rotating vise for absolute precision, Opera gets you to work immediately to bring your ideas to life.
30 W | 60 W | |
---|---|---|
Output Power | 30 W | 60 W |
Laser source and wave length | Nd:Ce:YAG 1064 nm | |
M² | < 1.5 | |
Speed of Galvo Head | 5000 mm/s | |
Max Pulse Energy | 0.67 mJ | 2 mJ |
Max Frequency | 60 kHz | 4 MHz |
Pulse Duration | 100 ns | 10-500 ns |
Max Marking Area | 100×100 mm (150×150 mm extendable thanks to rotating table and moving scan head) |
|
CNC Resolution | 0.0125 mm (XY) / 0.000625 mm (Z) | |
Spindle Revolution | 18000 RPM | |
Max CNC Area | 200 × 140 mm | |
Cooling System | Air cooled | |
Power Supply | 110/240 VAC - 50/60 Hz - 250 W | |
Dimension | 27.6 × 22.8 × 23.2 in / 700 × 580 × 590 mm | |
Weight | 132.3 lbs / 60 kg | |
Laser Class | 1 (4 with drag and clamp optional) |
Packing Qty | Priced individually |
---|
