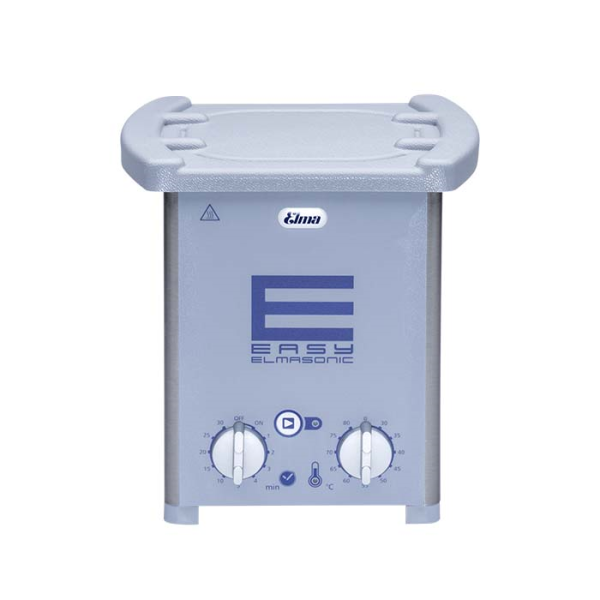

Elmasonic Easy 20H - 1.75L Ultrasonic

Link Copied to Clipboard
  • Model Number: E15H
  • Liquid Capacity: 1.75L (0.5 Gallon)
  • Inside Tank Size: 141x127x97mm
  • Dimensions: 176x189x218mm
  • Weight: 2.1kg
Link Copied to Clipboard
Priced individually

Whether in the laboratory, doctor's surgery, at the optician, jeweler or watchmaker, in industrial companies or service workshops, the Elmasonic units with their functional equipment and ultrasound frequency of 37 kHz are ideally equipped for different cleaning tasks.

The Elmasonic EASY family include a range of 7 different device sizes with tank volumes ranging from 0.8 to 28 liters. Microprocessor-controlled ultrasonic with sweep technology offers a state-of-the-art solution Product features:

  • Efficient 37 kHz ultrasonic high-performance transducers
  • Cleaning tank made of cavitation-resistant stainless steel
  • User-friendly and clearly arranged operating panel; sealed against liquid intrusion to protect the electronics
  • LED display for ultrasonic function
  • Rotary switch for easy preselection of the cleaning time
  • Continuous operating or short-term operation between 1 and 30 minutes
  • Permanent sweep function for optimized sound field distribution through frequency modulation
  • Dry-run protected heating
  • Temperature selectable by the rotary switch; from 30°C to 80°C in increments of 5°C
  • LED display for heating operation
  • Detachable power cord with IEC plug
  • Selectable temperature threshold with alarm
  • Automatic safety shutdown after 8 hours of continuous operation
  • Automatic safety shutdown at a bath temperature of 90 °C
  • Ergonomically shaped plastic handles
  • „Pulse“ function
  • 110 V

Main features...

  • Microprocessor controlled 37 Khz transducer power, self-regulating generator
  • Electronic diode display for time and temperature
  • Auto-start temperature control / temperature selection
  • Permanent sweep for an improved cleaning performance
  • Brushed stainless steel cavitation-resistant tanks with calibrated fill level
  • Ceramic heating elements tested and absolutely dry run proof
  • Safety switch/off
  • Available in 220V by special order
Packing Qty Priced individually
