Foredom SR Flex Shaft Machine With SCT Foot Control & Reverse


SKU
71-101 / 71-101A

  • Brand:  Foredom
  • Horsepower:  1/6
  • Max Speed:  18,000 RPM
  • Shaft Lenght:  39"
  • Voltage:  110V or 220V
  • Country of origin:  United States
 $259.00

Quantityprice
1 to 2 $259.00
3 and above $221.50
Priced individually

Total Price
$259.00

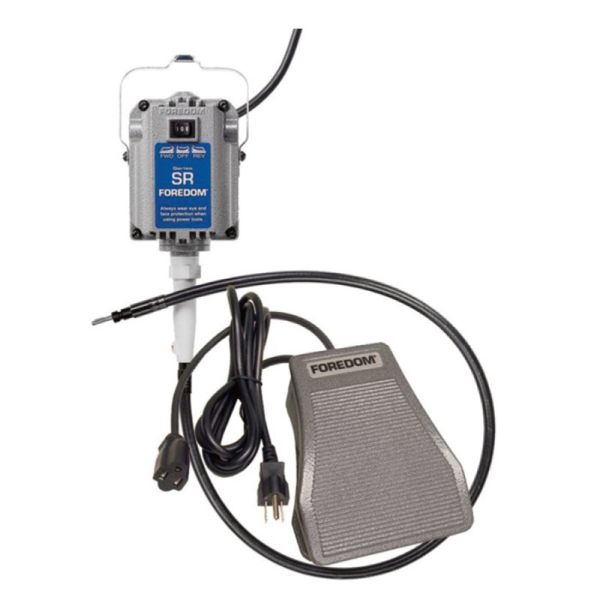

Foredom SR Flex Shaft Machine With SCT Foot Control & Reverse
Foredom SR Flex Shaft Machine With SCT Foot Control & Reverse

Foredom's most popular flex shaft model, the SR hang-up style motor, is teamed up with the SCT-1 foot operated speed control in metal housing. Two-Year Limited Warranty on Motor and Control.

SR Motor Description

Foredom's 1/6 HP, universal, flexible shaft machine runs in forward and reverse rotation at speeds up to 18,000 RPM. The SR combines the most important features our customers expect–power, reversibility, reliability, and versatility– all into one motor. It comes equipped with a motor bale for hanging, and our standard 39" long key tip inner shaft and outer sheath for connecting to any of Foredom’s 19 interchangeable, quick disconnect handpieces.

SCT-1 Speed Control Description

The SCT-1 offers the same electronics and smooth control as the FCT-1 but in a much heavier, cast iron housing. The added weight eliminates any unexpected movement of the control along the floor. The bottom surface of the speed control is covered with non-skid material. CSA listed. 6-3⁄4"(L), 4"(W), 2-3⁄8"(H), shipping weight – 6lbs. / 2.7kg.

Motor Details

The 1/6 HP, ball bearing Series SR has 33% more power than our older 1/8 HP motors, and 66% more than our original 1/10 HP models. The added power helps to reduce stalling or slowing down under normal workloads.

Advantages of Running in Reverse

  • Left-handed users have more control of the cutting tool
  • Reverse helps to keep dust and other debris flying away from right-handed users
  • Alternating motor direction helps to extend the life of certain abrasives
  • Reverse helps with accomplishing symmetrical grinding and carving techniques
  • Reverse makes it easier to back out stuck drill bits
  • Alternating motor direction makes it easier and faster to polish metals


Foredom SR Flex Shaft Machine
With SCT Foot Control & Reverse
(71-101)

Foredom SR Flex Shaft Machine
With SCT Foot Control & Reverse
(71-101A)

Voltage 110V 220V
Horsepower 1/6 1/6
Max Speed 18,000 RPM 18,000 RPM
Shaft Length 39" 39"

Product Manual How to Replace Shaft and Sheath
