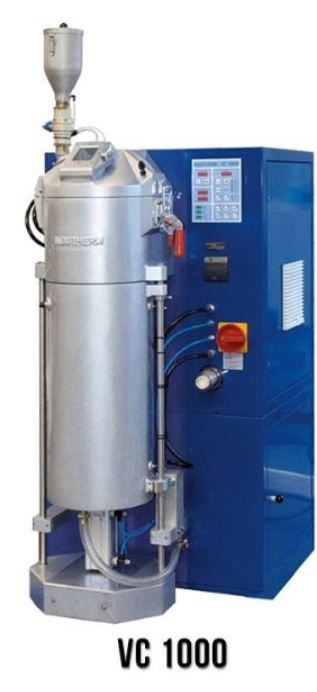

Indutherm VC 1000VHTC Large Casting Machine

SKU
78-4450HTC
Link Copied to Clipboard
main product photo
$0.00

Specifications
Brand Indutherm
Model VC 1000VHTC
Power Max/Electrical Connection 20 kW (3x400 V)
Temperature max. indirect inductive heating HTC 1850° C
Training Technical Remote Training & After Sales Support Included
Crucible Volume  1,5 l (1,7) = 4 kg Al / 12 kg Cu / 12 kg steel*
For use of molds up to ø 250 mm / 500 mm h
Maximum pressure 0,5 bar
Control system by LCD-display, full text readout
Vibration technology standard equipment Sweep Mode
Programs 100
Temp. measurement by optical pyrometer 1500° C
Country of Origin Germany
Link Copied to Clipboard
Priced individually
Categories: Indutherm, Large Vacuum Casting Machines, Vacuum Casting for Large Parts, Casting Machines

Vacuum pressure casting machine with Sweep Mode Vibration Technology and innovative feeding system

The absolute „State  of the art“-machine: the VC 680 V garantuees highest efficiency – due to a maximum of rapidness and quality.

The Vacuum Pressure Casting Machine VC 680 V is based on the VC 650 V. However, the filling device provided as standard means there is no need to open the melting chamber for refilling. This way, the melting chamber temperature remains high and unnecessary loss of energy is avoided. Most importantly: No oxygen enters the melting chamber so the chamber does not need to be evacuated again and refilled with inert gas.

The advantages:

  • lower personnel costs
  • more consistent casting quality
  • better process stability, less waste
  • optimised overlapping casting
  • up to 20 casting cycles per hour
  • high energy efficiency
  • longer service lives for consumables
  • minimised metal loss
  • replenishment without loss of pressure
Indutherm MC Series
indutherm Blue Power Logo Indutherm MC 16 Casting Machine Indutherm MC20V Casting Machine Indutherm MC60V Casting Machine

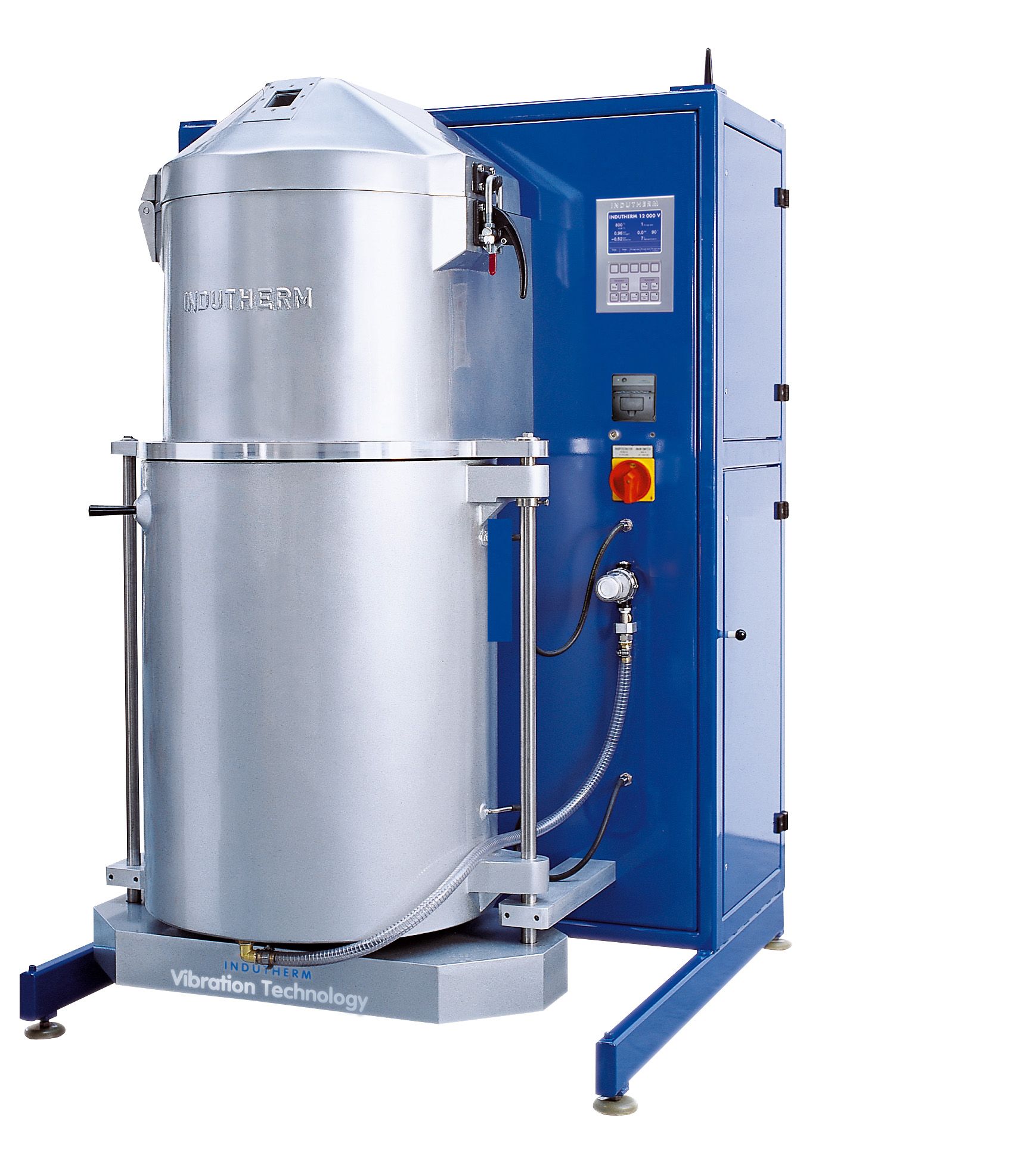

Specification VC 3000 VC 1000 VC 12000
SKU 78-4900 78-4450  78-12000
Power Max. / Electrical Connection 30kW / 3x400V / 50A,
50Hz or 60Hz		 25kW / 3x400V / 40A,
50Hz or 60Hz		 40kW / 3x400V / 50A,
50Hz or 60Hz
Maximum Temperature 1500°C 1500°C 1200°C
Crucible Volume 3400ccm = 34kg Ag
9kg Al

1500ccm = 15kg Ag
4kg Al

12000ccm = 180kg Au
18ct, 30kg Al


Flasks Up To (DxH) 450mm x 600mm
(17.7" X 23.6")		 250mm x 500mm
(9.8" X 19.6")		 600mm x 800mm
(23.6 X 31.4")
Optional Up To (DxH) 300mm x 600mm
(11.8" x 23.6")

--

--


Temperature Measurement N-type thermocouple
up to 1300°C
S-type thermocouple
up to 1500°C		 N-type thermocouple
up to 1300°C
S-type thermocouple
up to 1500°C

K-type thermocouple
up to 1200°C


Dual Temperature Control Yes

Yes

Yes


Temperature Programs 20 20 20
Program (Control) 100 (available just in VC 3000V) 100 (available just in VC 1000V) 100 (available just in VC 12000V)
Automatic Flask & Chamber Lift Yes (available just in VC 1000V) Yes (available just in VC 1000V) No
Flask Temperature Measurement Yes Yes Yes
RS 232 Diagnostic System Yes Yes Yes
Data Printer Yes Yes Yes
GSM Modem For Remote Service Optional Optional Optional
Granulation Tank Optional Optional Optional
Magnesium Kit Optional Optional Optional
Dimensions (WxDxH) 700mm x 1000mm x 1450mm
(27.5" x 39.3" x  57.0")		 700mm x 1000mm x 1450mm
(27.5" x 39.3" x  57.0")		 1200mm x1600mm x 2000mm
(47.2" x 62.9" x  78.7")
Weight 300kg ( 661.3 lbs) 250kg ( 551.1 lbs) 900kg ( 1974.16 lbs)
Cooling Water Supply 2.5 - 5 bar (15 - 30° C) ca. 300l/h. 2.5 - 5 bar (15 - 30° C) ca. 300l/h. 1200mm x1600mm x 2000mm
Room Temperature 10°C - 35°C 10°C - 35°C 10°C - 35°C
Environment Humidity 20% - 80% 20% - 80% 20% - 80%
Compressed Air Supply 7 - 8 bar 7 - 8 bar 7 - 8 bar
Protective Gas Supply 3 to 5 bar, pure N2 or pure Ar 3 to 5 bar, pure N2 or pure Ar 3 to 5 bar, pure N2 or pure Ar
Vacuum 0 - 20 mbar max., at least 40 m3/h 0 - 20 mbar max., at least 40 m3/h 0 - 20 mbar max., at least 40 m3/h
Packing Qty Priced individually
