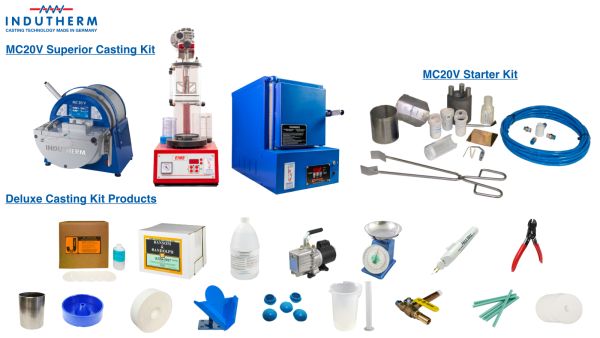

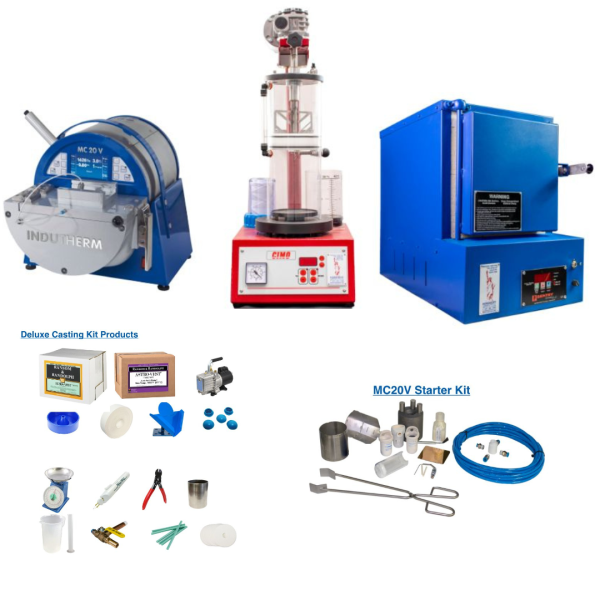

The Indutherm MC Casting Machines are engineered to melt and cast brass, gold, silver, platinum, palladium, and stainless steel under vacuum with precise temperature control up to 2000°C. Includes investment mixer, metal melter and casting supplies.
Starter Kit
Product Brochure
| Model | Power | Max Temp | Flask Size (Ø x H) | Compatible Metals |
|---|---|---|---|---|
| MC 16 | 3.5 kW | 2000°C | 30/50/65/80 x 80 mm | Gold (100 g 18 kt) |
| MC 20 V | 3.5 kW | 2000°C | 30/50/65/80 x 80 mm | Gold (100 g 18 kt) |
| MC 60V | 3.5 kW | 1300°C | Up to 80/100 x 120 mm | Gold (450 g 18 kt) |
| MC 100 V | 8 kW | 2000°C | Up to 80/100 x 120 mm | Platinum (500 g) |
| MTC 100 V | 8 kW | 2100°C | Up to 100 x 150 mm | Gold (450 g Au 18 kt) Steel (250 g) Platinum (600 g) |
High-Quality Machines, High-Quality Results
Indutherm’s advanced vibration technology promotes fast, even metal flow for dense castings, excellent mold fill, and outstanding overall quality.
For gold and silver applications, a thermocouple is placed directly in the melt to deliver precise temperature readings. By eliminating guesswork and reducing overheating, it helps minimize shrinkage porosity and improve casting consistency.
With up to 99 stored programs, operators can quickly recall proven settings for reliable, repeatable results.
Compact Size for Compact Projects
Measuring under two feet in all dimensions and weighing just 60 lbs. this casting machine is perfect for tight spaces. It serves as an economical option for small to medium projects, providing an excellent solution for studios and goldsmith's workshops with limited space.
Easy, Fast, and Efficient
Indutherm MC 20 V allows for casting cycles up to 4 minutes. Equipped with a high-quality LCD display for easy programming, this machine streamlines your workflow.
The 3.5 kW induction generator quickly reaches melting temperatures. Because of induction technology you can create alloys with ease.
For higher-temperature applications, the optical pyrometer accurately reads the surface temperature of the molten metal when the thermocouple can no longer be used, giving you precise control up to X degrees.
Versatile Uses
For gold and silver applications, the thermocouple sits directly in the melt to deliver precise temperature readings. By preventing overheating, it significantly reduces shrinkage porosity. Optional pyrometer available for platinum casting.
Vibration Technology
Using vibration during the casting process ensures better form filling, creating casts with greater, more consistent densities, higher elasticity, and greatly reduced porosity.
| Specifications | |
|---|---|
| Brand | Indutherm |
| Country of Origin | Germany |
| Model | MC 20 V (Gold & Platinum Casting with Vibration) |
| Casting Machine Power | 3.5 kW / 230 V single-phase / 16 A / 5060 Hz |
| Investment Mixer Power | 230 V single-phase / 10 A / 5060 Hz |
| Furnace Power | 110 V / 15 A / 5060 Hz |
| Maximum Temperature | 2000 °C (3632 °F) |
| Casting Volume | 100 g Au 18 ct / 110 g steel / 200 g platinum |
| Compatible Flasks (D H) | 1 / 2 / 2.5 / 3 3 in (30 / 50 / 65 / 80 80 mm) |
| Machine Weight | 60 lb (27 kg) |
| Shipping Weight | 375 lb (170 kg) |
