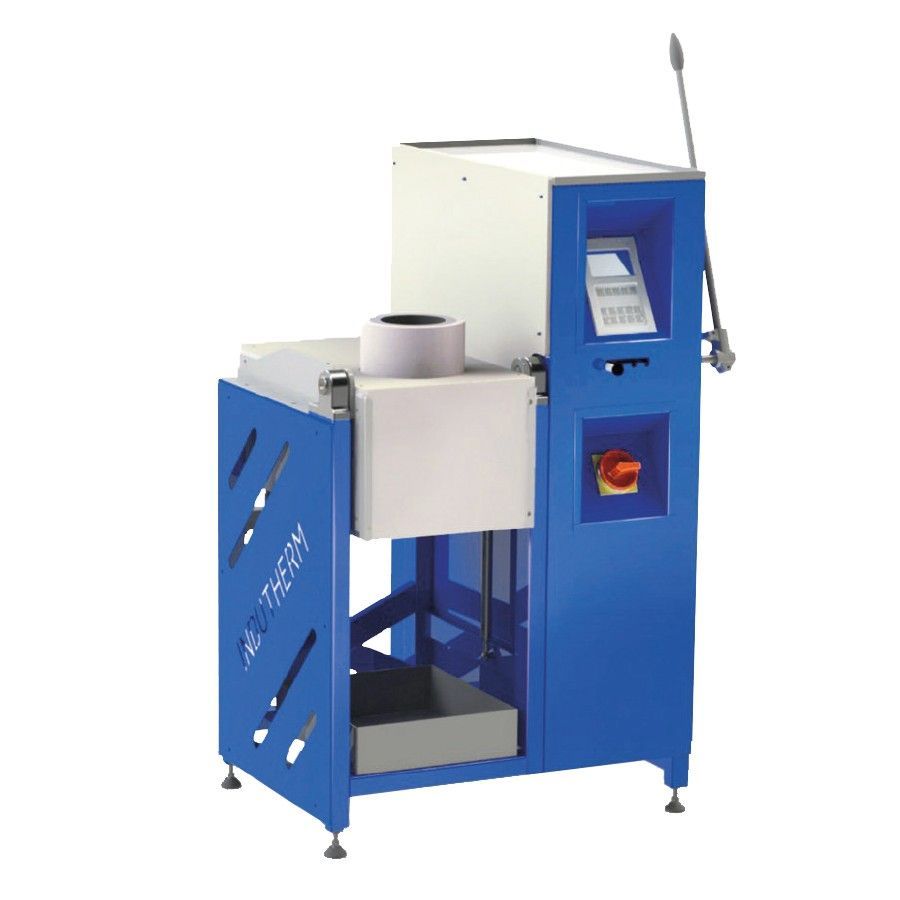

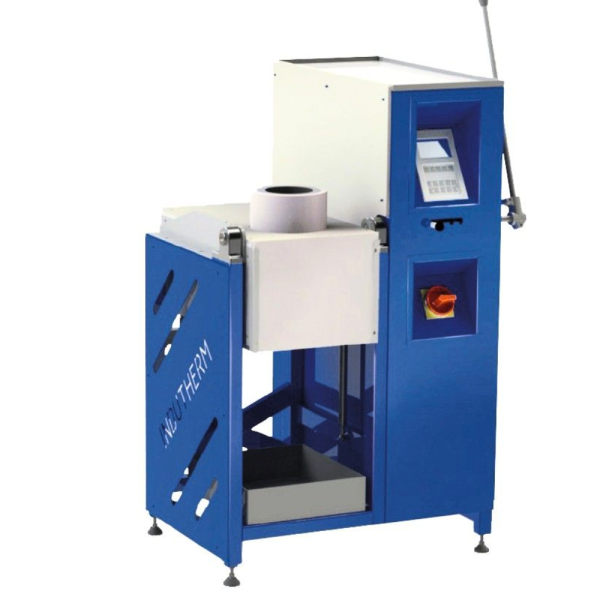

Indutherm TF 2000C & TF 4000C Tilting Furnace


SKU
78-1300C / 78-1500C

    • Model : TF 2000C

    • Brand : Indutherm

    • Power : 40kw (3x400V)

  • Temperature Max :1700°C
  • Crucible Volume : 2,000ccm = 5kg-14kg Steel
  • Dimensions : 700mm x 700mm x 1,250mm
  • Weight : 220kg
      • Model : TF 4000C

      • Brand : Indutherm

      • Power : 60kw (3x400V)

    • Temperature Max : 1700°C
    • Crucible Volume : 4,000ccm = 8kg-30kg Steel
    • Dimensions : 700mm x 700mm x 1,250mm
    • Weight : 220kg


QuantityPrice
1 to 1 Request a Quote
Priced individually

Indutherm TF 2000C & TF 4000C Tilting Furnace
Indutherm TF 2000C & TF 4000C Tilting Furnace

High temperature melting machines for steel, platinum, palladium, chrome-cobalt...

Professional melting furnace in advanced technology for melting bigger quantities in steel or other metals with high melting points in a ceramic crucible. Extremely strong mixing of the alloy because of low generator frequency. Tilting by an engine, handled by a joystick. The joystick can be connected by a cable which allows free moving of the worker and safe working.

High temperature tilting furnaces

These melting furnaces have been specially designed to melt large quantities of steel or other metals with a high melting point. The strong induction generator and low induction frequency means very good mixing of the metal can be achieved.

Major Applications

  • Die casting of voluminous parts like metal machine parts in sand molds
  • Die casting of big bars to send them back as solid block to refineries
  • Die casting of blanks for rolling mills
  • Die casting of anodes for plating appliances
  • Melting of scrap and main sprues in factories and casting companies
  • Melting of metal chips into liquid metal


TF 2000C

TF 4000C

Power Max. / Electrical Connection 40kw (3x400V) 60kw (3x400V)
Maximum Temperature 1700°C 1700°C
Crucible Volume 2,000ccm = 5kg-14kg Steel 4,000ccm = 8kg-30kg Steel
Handling & Control Tilting With Motor Drive (Remote Control) Tilting With Motor Drive (Remote Control)
Temperature Programs 20 20
Temperature Measurements By Pyrometer Optional Optional
LCD Display Standard Equipment Standard Equipment
Interface RS 232 Diagnostic System Standard Equipment Standard Equipment
GSM Modern For Remote Service Optional Optional
Dimensions (W x D x H) 700mm x 700mm x 1,250mm 700mm x 700mm x 1,250mm
Weight 220kg 220kg
