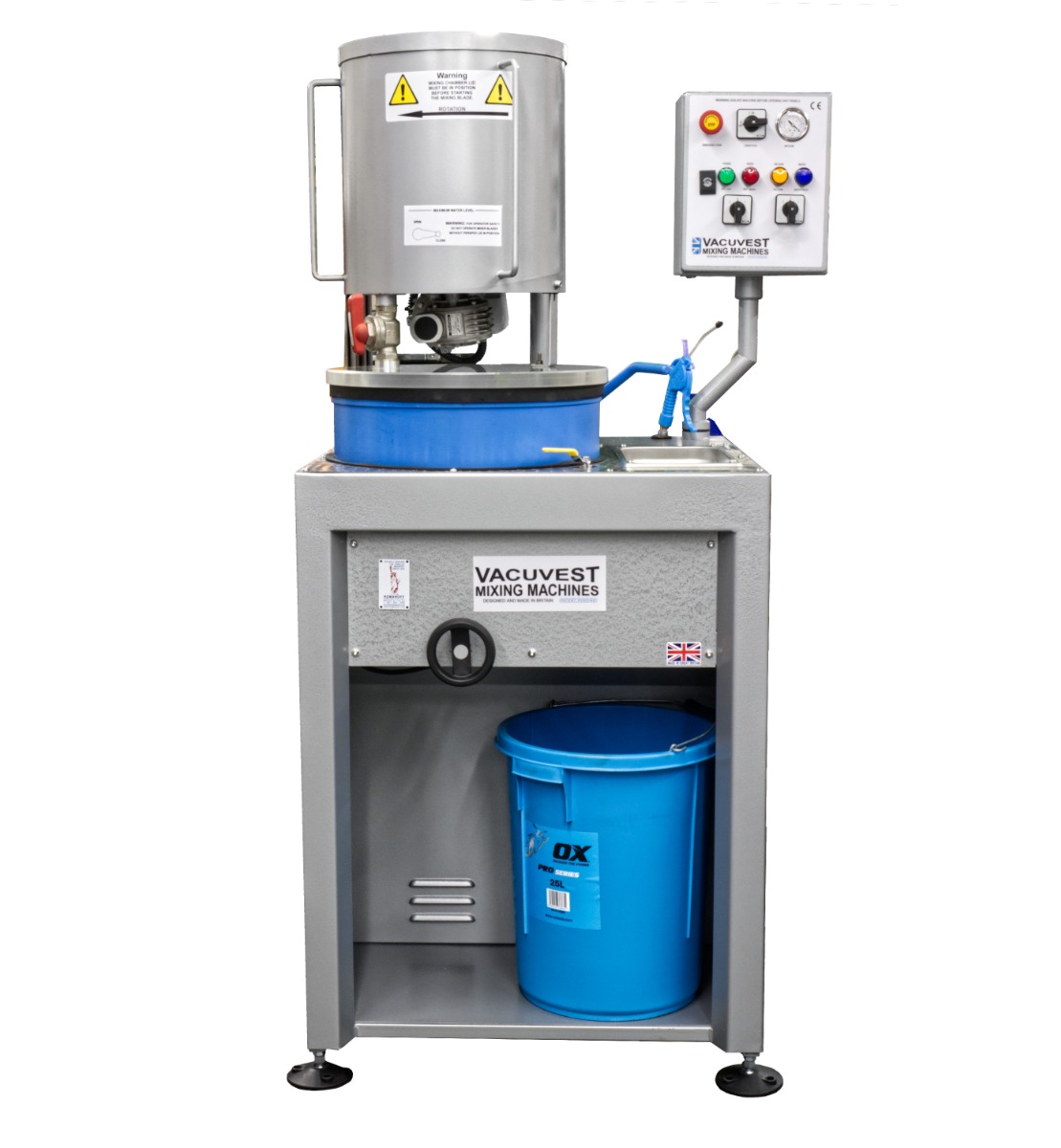

Vac-U-Vest #12 Investing Machine

Link Copied to Clipboard

Includes Freight from New York

  • Power: 220V Single-Phase 60Hz
  • Model: Vac-Cu-Vest #12
  • Pouring Valves: 1 Pouring Valve
  • Investment Capacity: 12kg (26.5-lbs) Dry Powder
  • Inner Chamber Diameter: 14" (350cm)
  • Max Perforated Flask Capacity w/ Ring: 5ea 4" x 9" Flanged Flasks
  • Maximum Flask Height: 9" (23cm)
  • Machine Dimensions (LxWxH): 27" x 31" x 61" (67cm x 77cm x 154cm)
  • Suggested Vacuum Pump: Minimum 15 CFM
  • Shipping Weight: 510 lbs (231kg)
  • Country of Origin: United Kingdom

Link Copied to Clipboard
Priced Individually

High-quality, English vacuum mixing and investing machines will greatly improve the consistency and quality of your mix

The unique mixer blade design unfolds the investment slurry under vacuum as it mixes. Since the unit is mixing under vacuum, air entrapment is reduced to virtually zero. Both upper and lower stainless steel chambers are vacuum sealed. The stainless steel turntable below is used to position each flask beneath the pouring valves before releasing the investment. Since the mixing and pouring of the silica powder are done inside the chamber, the exposure to dust is minimal to the operator, as well as providing a cleaner work environment.

*Vacuum pump not included.
