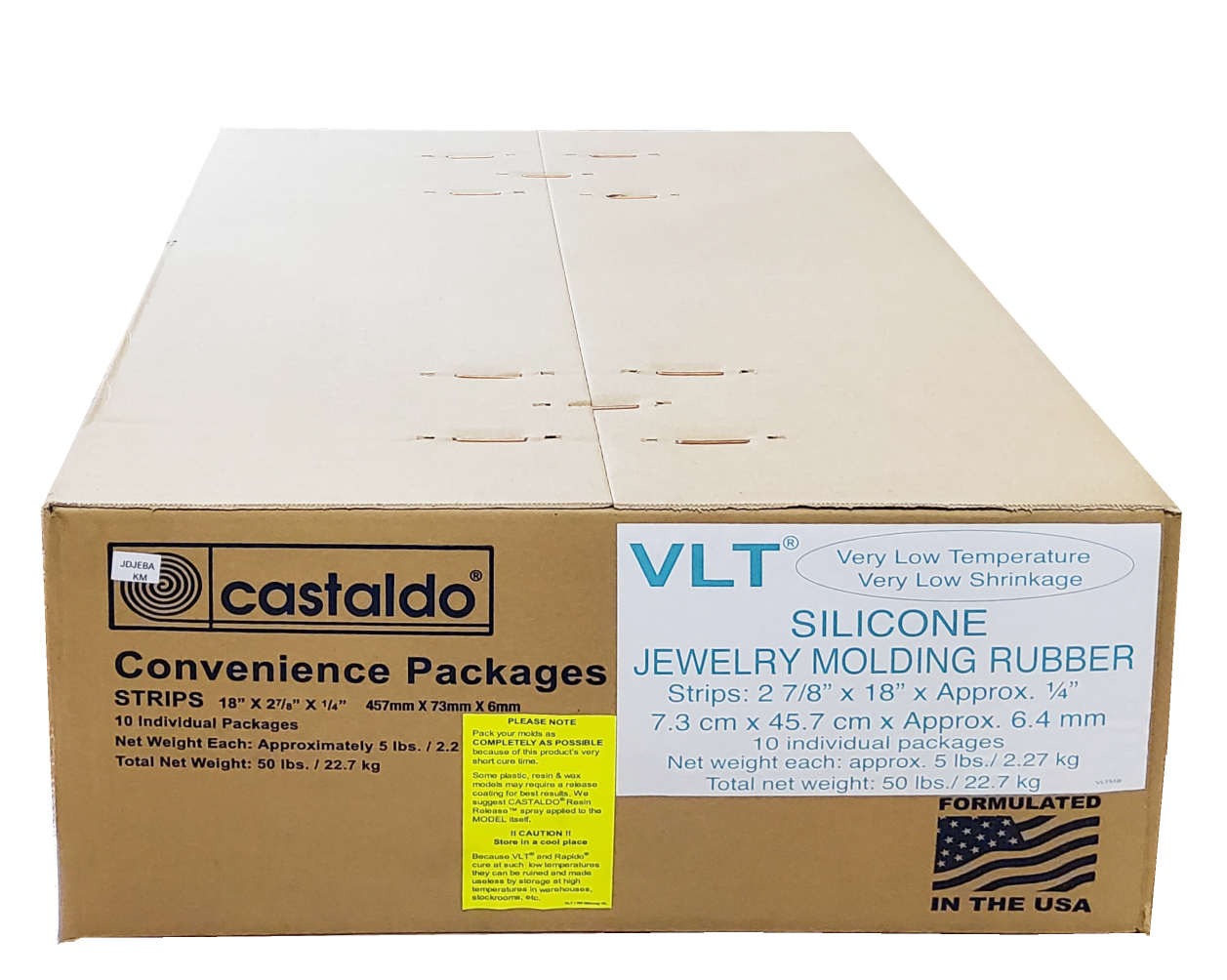

Castaldo VLT Silicone Mold - 2-7/8" Strips - 5lb Box


SKU
73-069

Castaldo silicone jewelry molding rubbers produce waxes with an extremely smooth high shine finish that won't stick to the mold. Smooth shiny waxes mean faster cleaning and less polishing of finished castings.
 $45.05

Quantityprice
1 to 5 $45.05
6 and above $40.55
Priced individually

Order Summary
Quantity (Each)1
Total Price$45.05
Castaldo VLT Silicone Mold - 2-7/8" Strips - 5lb Box
Castaldo VLT Silicone Mold - 2-7/8" Strips - 5lb Box

ALL CASTALDO SILICONE JEWELRY MOLDING RUBBERS MAKES SUPERIOR QUALITY MOLDS THAT ARE TOUGH, STRONG, EASY TO PACK, EASY TO CUT, AND EASY TO USE!

  • Castaldo silicone jewelry molding rubbers produce waxes with an extremely smooth high shine finish that won't stick to the mold. Smooth shiny waxes mean faster cleaning and less polishing of finished castings.
  • Wax patterns release from the rubber easily without the use of messy powders or silicone sprays.
  • Molds cut "like butter" yet resist tearing. Castaldo silicone jewelry molding rubbers make complex molds that are stronger than any other silicone molding rubber on the market. Molds last and last!
  • Castaldo silicone molding rubbers will not discolor silver models.
  • High thermal conductivity means that waxes cool more quickly, increasing the number of wax patterns that can be made per hour.
  • Castaldo silicone jewelry molding rubbers make molds that are ideal for vacuum wax injectors because they seal between injections almost as if they have never been cut. A better vacuum is created for better flow and fill.
  • Excellent return to shape or "memory".

VLT® Silicone Molding Rubber Instructions for Use...

CASTALDO® VLT® Silicone Molding Rubber is a Very Low Temperature rubber compound especially designed for use in the lost wax casting method of making precious metal jewelry. It’s ability to vulcanize at temperatures as low as 160°F / 71°C make it ideal for making tough, strong, long-lasting PRODUCTION rubber molds DIRECTLY from all types of plastic resin models created by CAD-CAM / Rapid Prototyping systems as well as from traditional wax carvings.

Use VLT with either traditional wax carvings or CAD-CAM Rapid Prototyping models.

CASTALDO® VLT® Silicone Molding Rubber can be vulcanized at a wide range of time and temperature combinations depending on the softening point and other characteristics of your model material. Below are some suggested combinations for a typical mold .” / 19 mm thick:

  • 88˚ C / 190˚ F for 30 minutes
  • 82˚ C / 180˚ F for 45 minutes
  • 76˚ C / 170˚ F for 60 minutes
  • 71˚ C / 160˚ F for 90 minutes

In general, the choice of lower vulcanizing temperatures will result in slightly less rubber shrinkage. Higher temperatures will result in slightly more rubber shrinkage. Rubber shrinkage at 88°C / 190°F is 0.1%.

Most of the tools and techniques for using VLT® are similar to those used with our Super High Strength™, Econosil® and other silicone molding rubbers. A copy of the instructions for those products is enclosed.



VLT
(73-069)

Color Blue Green / Teal
Hardness 48 - 50
Vulcanization Temperature 71°C - 88°C (160°F - 190°F)
Uses Low Temperature For Resin CAD-CAM, RP, SL Models
Shrinkage Very Low - 0.1%
Tensile Strength Before Break 8.9n/mm²
1289psi
Tear Strength Before Breaking 18.2n/mm²
104lbs/in
Elongation Before Breaking 614%

The only change from established mold-making techniques required when using CASTALDO® VLT® Silicone Molding Rubber may be the need to coat some plastic model with a release spray before vulcanizing to ensure easy release of the model after vulcanization. DO NOT USE SILICONE SPRAYS WITH THIS PRODUCT. Our CASTALDO® Resin Release™ is specially formulated for this purpose. Teflon® (PTFE) sprays also work very well, as do common household cooking oil sprays made with olive oil or canola oil, such as PAM ® . Wax models usually do not need a release coating.

➡ PLEASE NOTE: Because CASTALDO VLT® vulcanizes at such low temperatures it does not have the extended storage life of many of our other compounds. CASTALDO VLT® may SELF-VULCANIZE DURING STORAGE at high summer temperatures or in very warm climates.

During the summer months or in very warm climates the rubber should be kept in cold storage such as in a refrigerator or in a constantly air-conditioned room, but NOT below 32° F / 0°C. You may want to avoid storing more VLT rubber than is needed for immediate use. Similarly, long ocean freight shipments during very warm periods may affect the rubber. Possible solutions might be to avoid such shipments entirely during the summer months or ship smaller quantities via air freight.

Finished molds require no mold release spray. Wax patterns release easily because the rubber already contains anti-stick compounds.

When molding delicate models the risk of damage can be minimized by closing the vulcanizing press SLOWLY a little at a time to allow the rubber to soften and flow.

The cure system used with CASTALDO® VLT® Silicone Molding Rubber is NOT compatible with the cure system used with our natural rubber compounds such as White Label ®, Gold Label ® , Titanium Label™ or No Shrink Pink ® Mold frames, mold plates, models, sprue formers, etc. used with one type of rubber compound should be cleaned thoroughly with solvents before being used with the other type. A more practical approach may be to devote certain mold frames, mold plates, etc. solely to the use of silicone rubber compounds.

CASTALDO® VLT® Silicone Molding Rubber CANNOT be mixed in the same mold with CASTALDO® White Label ®, Gold Label ® , Titanium Label™ or No Shrink Pink ® rubbers for the above reason and also because the two types of rubber will not bond.

CASTALDO® VLT® Silicone Molding Rubber is compatible with all mold making techniques including mold cutting and powder and cream separation molds. It is particularly adaptable to the powder and cream separation processes since the parting line is so easily controlled. For patterns strong enough to resist some pressure, merely push the model into the unvulcanized rubber to the desired point. If not satisfied with the results, remove the model, smooth the rubber over with your finger or tool and re-insert the model.

CASTALDO® VLT® Silicone Molding Rubber is strong, but not as strong as natural rubber compounds such as White Label®, Gold Label®, Titanium Label™ and No Shrink Pink®. Remember to pull GENTLY while cutting the mold because of this difference.

CASTALDO® VLT® Silicone Molding Rubber CANNOT be burned in the usual manner to add sprues or correct details.

CAUTION: Vapors given off during vulcanization may produce temporary eye, nose and throat irritation in susceptible individuals. Use with adequate ventilation. See Material Safety Data Sheet for further details.

USERS PLEASE READ...

The information contained herein is believed to be accurate and reliable; however, it is the user's responsibility to determine suitability of use.

F. E. Knight, Inc./CASTALDO® Products Mfg. Corp. warrants only that its products will meet its specifications. There is no warranty of merchantability of fitness for use, nor any other express or implied warranties. The user's exclusive remedy and F. E. Knight Inc. / CASTALDO®'s sole liability is limited to refund of the purchase price or replacement of any product shown to be otherwise than as warranted. F. E. Knight/CASTALDO® will not be liable for incidental or consequential damages of any kind.

CASTALDO® VLT® Silicone Molding Rubber is intended for professional use only by persons familiar with jewelry casting techniques.

We are not responsible for misuse of our products or their use in conjunction with unsafe or improperly maintained equipment or for uses other than intended as jewelry casting mold making material.
