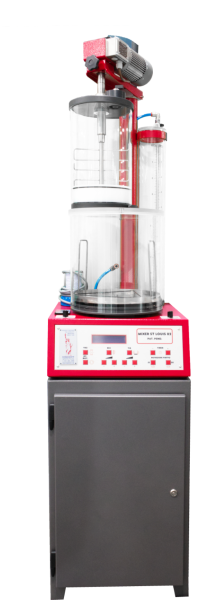

St. Louis #82 6-Kg Vacuum Investment Mixing Machine (platinum)


SKU
76-115-P

  • Brand:  Cimo
  • Model #:  82
  • Powder Capacity:  6 Kg Gold + 3 Kg Platinum
  • Investing Flask:   Multiple (Gold or Platinum)
  • Machine Base Dimensions:  490mm x 420mm
  • Machine Height: 1750mm
  • Voltage:  220V 1-ph
  • Max Flask Height:  200mm - 100mm
  • Flask Plate Diameter:  280mm
  • Machine Weight:  102 Kg
  • Machine Shipping Weight:  130 Kg
  • Country of origin:  Italy


QuantityPrice
1 to 1 Request a Quote
Priced individually

St. Louis #82 6-Kg Vacuum Investment Mixing Machine (platinum)
St. Louis #82 6-Kg Vacuum Investment Mixing Machine (platinum) St. Louis #82 6-Kg Vacuum Investment Mixing Machine (platinum) St Louis Mixer - Investment Casting Of Gold Ring

Heavy Duty Vacuum Investment Mixer with Stainless Steel Upgrade for Platinum Process

The most important feature of this unit is that you are mixing and pouring investment under a controlled vacuum environment.

Platinum investment unit supplied with particular mixing container and special cross blade. The machine is supplied with a separate standard mixing container to be used for gold investment powder. A syringe is provided for additive independent loading of binder.

With the St. Louis Mixers, you can automatically mix and pour your investment in an enclosed see through mixing chamber. A very important feature of these units are, you are mixing and pouring investment under a controlled vacuum environment with vibration. This is a real time saver as you will not have to separate mixing, pouring and vacuuming operations. Since it is user friendly, anyone can be trained in a few minutes on how to operate these units.

Simply place your flasks in the lower flask chamber below the investment mixing chamber. Add the correct amount of investment based on your flask size/s; start the vacuum pump (included), open the water valve from the graduated water cylinder, and then start the adjustable speed mixing motor and set your timer. For multiple flasks units, you can electronically turn the table to align the next flask under the pouring valve. As the investment fills the flasks, turn on the adjustable vibration table under the flasks and you are done!

The ST.LOUIS vacuum investment mixers are a patented unique system for the degassing of water and powder before mixing under vacuum by using adjustable speed and mixing time.

The investment will pour into the flask under vacuum, with vibration ensuring a homogeneous and bubble free invested flask.

This model has two investment mixing chambers, a 3Kg chamber for platinum investment and a 6Kg mixing chamber for gold investment.

Reversible mixing blade and programmable mixing timer.

Has vibration option with adjustable intensity and electronic flask plate rotation.


Item 76-113-MINI 76-113-4KG 76-115 76-115-P 76-114-14XL 76-130 76-131
ITEM NAME ST. LOUIS MINI MIXER ST. LOUIS 92-4 KG St. LOUIS #82 ST. LOUIS 82-PT St. LOUIS 2000 - 14 XL ST. LOUIS 2002 - XL ST. LOUIS 2000 - 22 XXL
POWDER CAPACITY 1 Kg 4 Kg 6 Kg 6 Kg Au / 3 Kg Pt 14 Kg 14 Kg 22 Kg (w/ side rollers and scale)
INVESTING FLASK One One Multiple Multiple (gold or platinum) Multiple Multiple Multiple
MAX FLASK HEIGHT 120 mm 20 cm 20 cm 20 cm Pt /10 cm Au 35 cm 40 cm 40 cm
FLASK PLATE DIAMETER 10 cm 15 cm 28 cm 28 cm 33 cm 45 cm 45 cm

MACHINE DIMENSIONS
(L x W x H)

30 cm x 35 cm x 72 cm 30 cm x 35 cm x 85 cm 42 cm x 42 cm x 105 cm 46 cm x 42 cm x 105 cm 62 cm x 66 cm x 172 cm 72 cm x 80 cm x 175 cm 72 cm x 80 cm x 175 cm / 57 cm x 120 cm x 123 cm

SHIPPING DIMENSIONS
(L x W x H)

38 cm x 38 cm x 85 cm 38 cm x 38 cm x 105 cm 52 cm x 52 cm x 132 cm 56 cm x 96 cm x 124 cm 82 cm x 82 cm x 190 cm 82 cm x 82 cm x 190 cm 90 cm x 90 cm x 200 cm / 72 cm x 135 cm x 125 cm
VOLTAGE 220V 220V 220V 220V 220V 220V 220V + 380V
VACUUM PUMP Not Included Not Included Not Included Included Included Included Included
SUGGESTED PUMP SIZE 6/10m³ 6/10m³ 6/10m³ 18m³ 40/50m³ 100m³ 100m³
WEIGHT (Packed) 20 kg 24 kg 61 kg 70 kg 210 kg 150 kg 205 kg + 175 kg
WEIGHT (Unpacked) 17 kg 22 kg 44 kg 53 kg 267 kg 205 kg 105 kg + 150 kg
