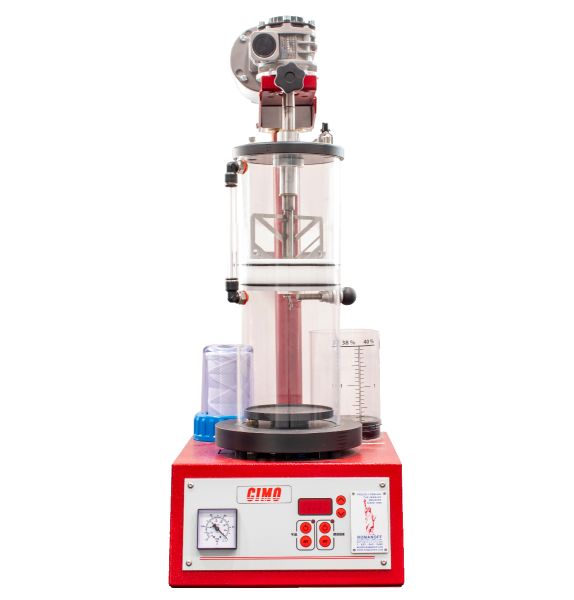

St. Louis CIMO Mini Mixer Vacuum Investment Mixing Machine

SKU

76-113-MINI

Skip to the beginning of the images gallery

$3,955.00

Brand	CIMO
Name	St. Louis Cimo Mini Mixer
Model	Mini-Mixer Gold and Platinum Investment
Powder Capacity	1 Kg (2.2 lbs)
Investing Flask	One
Voltage	220V Single Phase
Flask Size Height & Diam.	120 mm (H) x 100 mm (Diam.) (4.7" x 4") in
Motor Power	50W
Uncrated Size	30 x 35x 72 cm (11.8"" x 13.7" x 28.3" inches)
Crated Size	38 x 38 x 85h cm (15" x 15" x 33.5" inches)
Crated Unit Weight	20kg 44.1lbs
Uncrated Weight	17 kg 37.47 lbs
Country of Origin:	Italy

Priced individually

Details

Tabletop unit, specially designed for platinum and gold investment mixing

The most important feature of this unit is that you are mixing and pouring investment under a controlled vacuum environment.

With the St. Louis Mixers, you can automatically mix and pour your investment in an enclosed see-through mixing chamber. A very important feature of these units is, you are mixing and pouring investment under a controlled vacuum environment with vibration. This is a real-time saver as you will not have to separate mixing, pouring, and vacuuming operations. Since it is user-friendly, anyone can be trained in a few minutes on how to operate these units.

Simply place your flasks in the lower flask chamber below the investment mixing chamber. Add the correct amount of investment based on your flask size, start the vacuum pump (not included), open the water valve from the graduated water cylinder, and then start the adjustable speed mixing motor and set your timer. For multiple flasks units, you can electronically turn the table to align the next flask under the pouring valve. As the investment fills the flasks, turn on the adjustable vibration table under the flasks, and you are done!

The MINI MIX has adjustable vibration & speed control and a 1-liter capacity. Great for producing one 100mm x 120mm flask per cycle.


SKU#	76-113-MINI	76-113-4KG-P	76-115	76-115-P	76-114-14XL	76-130	76-131
Name	St. Louis Mini Mixer	ST. LOUIS 92-4 KG.	ST. LOUIS #82	ST. LOUIS 82-PT	ST. LOUIS 2000 - 14XL	ST. LOUIS 2002 - XXL	ST. LOUIS 2000-22 XXL
Powder Load	1 Kg (2.2 lbs)	4 kg (8.8 lbs.)	6 kg (13.2 lbs.)	6 Kg Au / 3 Kg Pt (13.2 lbs/6.6 lbs)	14 kg (30 lbs.)	14 kg (30 lbs.)	22 kg. (8.5 lbs.)
Flask #	Single	Single	Multi.	Multi.	Multi.	Multi.	Multi.
Flask Size Height & Diam.	120 mm (H) x 100 mm (Diam.) (4.7" x 4") in	200mm (H) x 150mm (Diam) (7.8" X 5.9") in.	200 mm (H)x 280 mm (Diam) (7.87" x 11.0") in.	200 mm (H) x 280 mm (Diam.) (7.87" x 11.0") in	350 mm (H) x 330 mm (Diam.) (13.7" X 13") in	350 mm (H) x 330 mm (Diam.) (13.7" X 13") in.	400 mm(H) x 450 mm (Diam.) (15.7" x 17.7") in.
Voltage	220V 1 Phase	220V 1 Phase	220V 1 Phase	220V	220V	220V	220+ 380 V
Power	300W	300W	700w	2000w	2200W	2200W	2500+ 1000P
Motor Power	50W	90W	280w	280w	n/a	n/a	220/ 380 W
Vacuum Pump	No	No	No	Yes	Yes	Yes	Yes
Advise Pump	6/10m³ 3/7 CFM	6/10m³8CFM	6/10m³10CFM	18m³10CFM	40/50m³21CFM	40/50m³21CFM	100m³21CFM
Unit size Uncrated L x W x H	30 x 35x 72 cm (11.8"" x 13.7" x 28.3") inches	30 x 35 x 85 cm (11.8" x 13.7" x 33.4") inches	42 x42 x 105cm (16.5"x 16.5" x 41.3") inches	42x 42x 175 cm (16.5" x6.5" x 68.8") inches	62 x 66 x 172 cm (24.4" x26"x 67.7") inches	62x 66x 172 cm (24.4" x26"x 67.7") inches	72x 80x 175 cm 28.3"x 31.4"x 68.8 ") inches
Uncrated Weight	17 kg 37.47 lbs	22 kg 48.5 lbs.	24 kg 52.9 lbs.	98 kg 216.0 lbs.	210 kg 463 lbs.	220 kg 485 lbs.	150 kg. 330.6 lbs.
Unit Size Crated L x W x H	38 x 38 x 85h cm (15" x 15" x 33.5" inches)	38 x 38 x 105 cm (15" x 15" x 41.3" inches)	52 x 52 x 132 cm (20.4" x 20.4" x 52" inches)	56 x 96 x 124 cm (22"x 37.7" x 48.8" inches)	82 x 82 x 190 cm (32.2" x 32.2" X 74.8" inches)	82 x 82 x 190 cm (32.2" x 32.2" X 74.8" inches)	90 x 90 x 200 cm (35.4" x 35.4" x 78.7" inches)
Crated Unit Weight	20kg (44 lbs)	24 kg (53lbs)	61 kg (134.4 lbs.)	125 kg (275.5 lbs.)	267 kg (588.6 lbs.)	280 kg (617.2 lbs.)	175 kg (385.8 lbs.)
