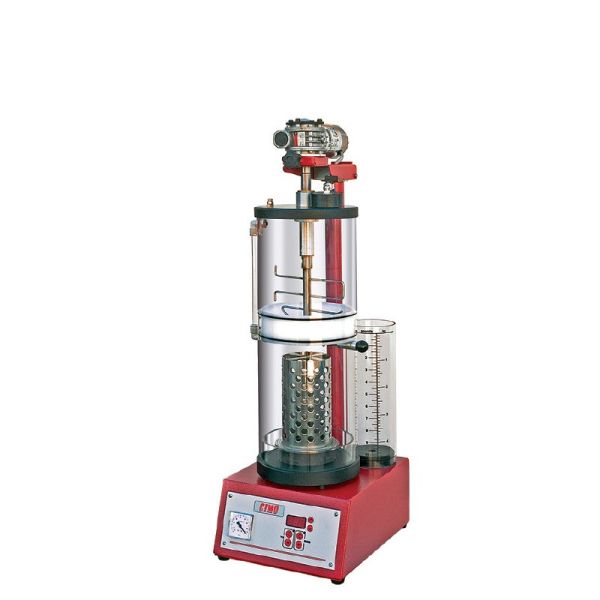

St. Louis CIMO #92 4-Kg Vacuum Investment Mixing Machine Heavy Duty

SKU
76-113-4KG-P
Link Copied to Clipboard
$5,584.00
Brand CIMO
Name ST. LOUIS 92-4 KG.
Model 92 Platinum and Gold Investment
Powder Capacity 4 kg (8.8 lbs.)
Investing Flask One
Voltage 220V 1 Phase
Flask Size
Height & Diam.
200mm (H) x 150mm (Diam)
(7.8" X 5.9") in.
Motor Power 90W (Heavy Duty Motor)
Uncrated Size 30 x 35 x 85 cm
(11.8" x 13.7" x 33.4") inches
Crated Unit
Weight
24 kg
(53lbs)
Uncrated Weight 22 kg
48.5 lbs.
Country of Origin: Italy

Link Copied to Clipboard
Priced individually

Tabletop unit, specially designed for platinum investment mixing


The 90W model has a heavy-duty motor designed for gold investment and for mixing two part platinum investment powders as well.

The most important feature of this unit is that you are mixing and pouring investment under a controlled vacuum environment.

With the St. Louis Mixers, you can automatically mix and pour your investment in an enclosed see-through mixing chamber. A very important feature of these units are, you are mixing and pouring investment under a controlled vacuum environment with vibration. This is a real time saver as you will not have to separate mixing, pouring and vacuuming operations. Since it is user friendly, anyone can be trained in a few minutes on how to operate these units.

Simply place your flasks in the lower flask chamber below the investment mixing chamber. Add the correct amount of investment based on your flask sizes, start the vacuum pump (not included), open the water valve from the graduated water cylinder, and then start the adjustable speed mixing motor and set your timer. For multiple flasks units, you can electronically turn the table to align the next flask under the pouring valve. As the investment fills the flasks, turn on the adjustable vibration table under the flasks, and you are done!<

*Larger Models Available

  St. Louis CIMO #92 4-Kg St. Louis CIMO #92 4-Kg St. Louis Cimo #82 6-Kg St. Louis CIMO #82 6-Kg St. Louis CIMO 2000XL 14-Kg St. Louis 2002 XXL Automatic 14-Kg St. Louis 2000 XXL - 22 Kg Investment Mixer
SKU# 76-113-MINI 76-113-4KG-P 76-115 76-115-P 76-114-14XL 76-130 76-131
Name St. Louis Mini Mixer

ST. LOUIS
92-4 KG.

ST. LOUIS
#82

ST. LOUIS
82-PT

ST. LOUIS
2000 - 14XL

ST. LOUIS
2002 - XXL

ST. LOUIS
2000-22 XXL

Powder Load 1 Kg
(2.2 lbs)
4 kg
(8.8 lbs.)
6 kg
(13.2 lbs.)
6 Kg Au / 3 Kg Pt
(13.2 lbs/6.6 lbs)
14 kg
(30 lbs.)

14 kg
(30 lbs.)

22 kg.
(8.5 lbs.)
Flask # Single Single  Multi. Multi. Multi. Multi. Multi.
Flask Size
Height & Diam.
120 mm (H) x 100 mm (Diam.)
(4.7" x 4") in
200mm (H) x 150mm (Diam)
(7.8" X 5.9") in.
200 mm (H)x 280 mm (Diam)
(7.87" x 11.0") in.
200 mm (H) x 280 mm (Diam.)
(7.87" x 11.0") in
350 mm (H) x 330 mm (Diam.)
(13.7" X 13") in

350 mm (H) x 330 mm (Diam.)
(13.7" X 13") in.

400 mm(H) x 450 mm (Diam.)
(15.7" x 17.7") in.
Voltage 220V 1 Phase 220V 1 Phase 220V 1 Phase 220V 220V 220V 220+
380 V
Power 300W 300W 700w 2000w 2200W 2200W 2500+
1000P
Motor Power 50W 90W 280w 280w n/a n/a 220/
380 W
Vacuum Pump No No No Yes Yes Yes Yes
Advise
Pump
6/10m
3/7 CFM
6/10m
8CFM
6/10m3 10CFM 18m3 10CFM 40/50m3 21CFM 40/50m3 21CFM 100m3 21CFM
Unit
size
Uncrated
L x W x H
30 x 35x 72 cm
(11.8"" x 13.7" x 28.3") inches
30 x 35 x 85 cm
(11.8" x 13.7" x 33.4") inches

42 x42 x 105cm
(16.5"x 16.5" x 41.3") inches

42x 42x 175 cm
(16.5" x6.5" x 68.8") inches
62 x 66 x 172 cm
(24.4" x26"x 67.7") inches

62x 66x 172 cm
(24.4" x26"x 67.7") inches

72x 80x 175 cm
28.3"x 31.4"x 68.8 ")
inches
Uncrated Weight 17 kg
37.47 lbs
22 kg
48.5 lbs.

24 kg
52.9 lbs.

98 kg
216.0 lbs.
210 kg
463 lbs.
220 kg
485 lbs.
150 kg.
330.6 lbs.
Unit Size
Crated
L x W x H
38 x 38 x 85h cm
(15" x 15" x 33.5" inches)

38 x 38 x 105 cm
(15" x 15" x 41.3" inches)

52 x 52 x 132 cm
(20.4" x 20.4" x 52" inches)

56 x 96 x 124 cm
(22"x 37.7" x 48.8" inches)
82 x 82 x 190 cm
(32.2" x 32.2" X 74.8" inches)

82 x 82 x 190 cm
(32.2" x 32.2" X 74.8" inches)

90 x 90 x 200 cm
(35.4" x 35.4" x 78.7" inches)
Crated Unit
Weight
20kg
(44 lbs)
24 kg
(53lbs)

61 kg
(134.4 lbs.)

125 kg
(275.5 lbs.)
267 kg
(588.6 lbs.)
280 kg
(617.2 lbs.)
175 kg
(385.8 lbs.)
Packing Qty Priced individually
