Advanced digital wax injector for bubble-free, high-detail jewelry patterns.
Product Manual
Product Brochure
| Altima (74-265-SYS1) | Prime D (74-269A) | Prime X (74-269X1) | |
|---|---|---|---|
| Z Height Control | √ | X | X |
| Control Interface | Touch Screen | Touch Screen | LCD Display |
| Mold Clamp | √ | √ | √ |
| Double Injection | √ | √ | X |
| Assist Mode | √ | X | X |

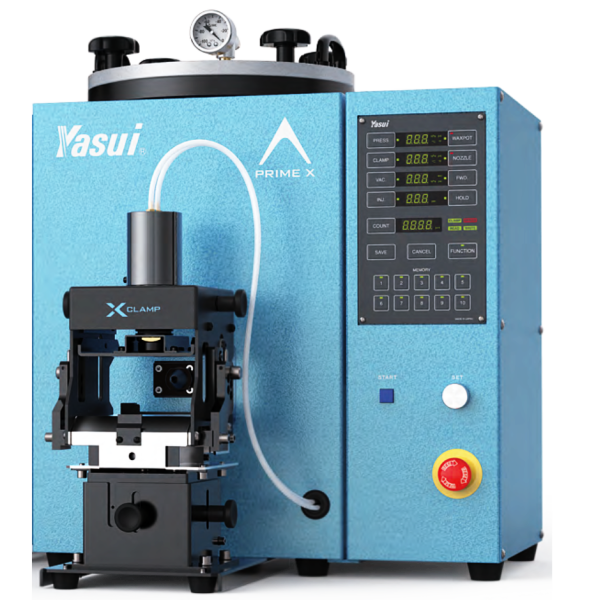

The Yasui Prime X Vacuum Wax Injector System represents the pinnacle of vacuum wax injection technology, refined through 30 years of Yasui’s industry-leading expertise. With over 20,000 units operating globally, this system is the professional standard for high-volume, zero-defect jewelry production.
By integrating advanced digital controls with a high-capacity vacuum system, the Prime X eliminates air bubbles, ensuring every wax pattern captures the most intricate details of your molds with absolute consistency. Operators can easily tune settings for each mold, creating a mold-specific "recipe" stored in the system memory for instant recall.

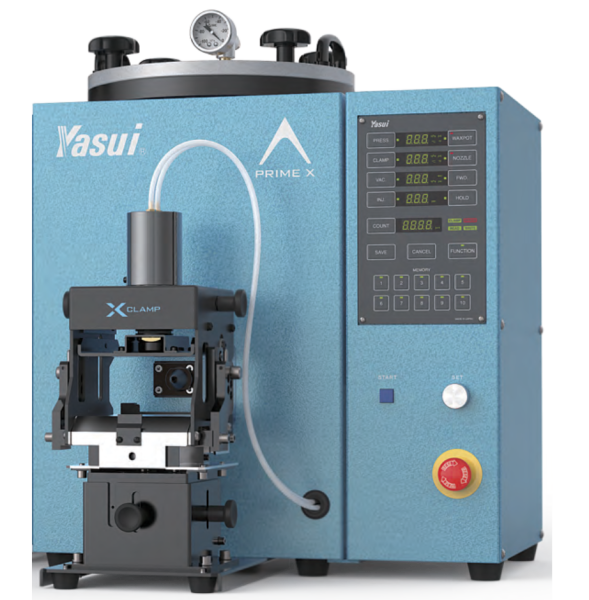

The X-Clamp Advantage: Intelligent Mold Pressure Management
The true breakthrough of the Prime X system lies in the integrated X-Clamp technology. Standard auto-clamps apply uniform, rigid pressure across the entire mold surface, which frequently leads to flashing, parting line variations, or crushed internal details on delicate designs.
The X-Clamp system reengineers this process through precision multi-axis stabilization and adaptive force distribution:
-
Targeted Clamping Force: Distributes pressure dynamically across the geometric pain points of the mold, keeping parting lines locked tight without compressing intricate design chambers.
-
Flashing Elimination: Prevents rubber deformation near the injection nozzle, cutting down clean-up and bench-work time after casting.
-
Total Digital Integration: Clamping parameters link directly to the Prime X control interface. Once a specific mold recipe is saved, the exact X-Clamp pressure settings deploy automatically alongside vacuum time and wax temperature.
| Feature | Performance Benefit |
|---|---|
| Large Clamp Design | Enhanced stability and accuracy compared to the Yasui D-VWIS. |
| Integrated Mold Memory | Stores parameters for all molds to enable rapid project changes. |
| Precision Vacuum Technology | Eliminates air bubbles for zero-defect wax patterns. |
| X-Y-Z Axis Control | Precise manual and digital adjustments for perfect nozzle alignment. |
| Auto Preheating | Reduces downtime by ensuring the system is production-ready in advance. |
| Digital Interface | User-friendly computer control for quick parameter checks and tuning. |
| Equal Weight Distribution | Ensures uniform wax weights across every injection for lower rejection rates. |
Why Upgrade to the Yasui Prime X?
- Boosted Productivity: Streamlined workflow and pre-stored settings increase daily output.
- Precision Casting: High-fidelity patterns mirror the original design without distortion.
- Operational Ease: Pre-stored parameters allow new operators to start producing immediately.
- Global Reliability: Built on a legacy of 20,000+ installations worldwide.
The Yasui Prime X is the ideal choice for jewelry manufacturers demanding maximum efficiency and flawless results for high-precision casting.
The Future of Jewelry Casting Technology
As the exclusive North American master distributor for Yasui, Romanoff provides access to industry-leading jewelry casting solutions trusted by manufacturers around the world.
Renowned for exceptional reliability, precision engineering, and production efficiency, Yasui casting systems help manufacturers achieve consistent, high-quality results while maximizing productivity and reducing material waste. Backed by Romanoff's technical expertise, training, and support, Yasui is helping shape the future of jewelry manufacturing.
| Specifications | |
|---|---|
| Brand | Yasui |
| Country of Origin | Japan |
| Model | Prime X |
| Power | 230V, 50/60Hz, Single Phase |
| Temp. Control Range | 40°C - 100°C (104°F - 212°F) |
| Wax Capacity | 7.7 lbs (~3.5 kg) |
| Clamp Type | X Clamp |
| Interface | LCD Display |
| Machine Weight | 55.2 lbs (25 kg) |
| Machine Dimensions (L x W x H) | 20.59 x 14.69 x 21.38 in (52.3 x 37.3 x 54.3 cm) |
