Standard Table-Top Vulcanizer


SKU
73-047 / 73-047A

  • Voltage : 110V or 220V
  • Plate Size : 8" x 5"
  • Temperature Max : 550°F (288°C)
  • Opening Max : 3"
  • Dimensions : 14.5" x 7" x 26"
  • Weight : 48lbs
 $699.00

Quantityprice
1 $699.00
2 and above $613.00
Priced individually

Order Summary
Quantity (Each)1
Total Price$699.00
Standard Table-Top Vulcanizer
Standard Table-Top Vulcanizer Standard Table-Top Vulcanizer Standard Table-Top Vulcanizer

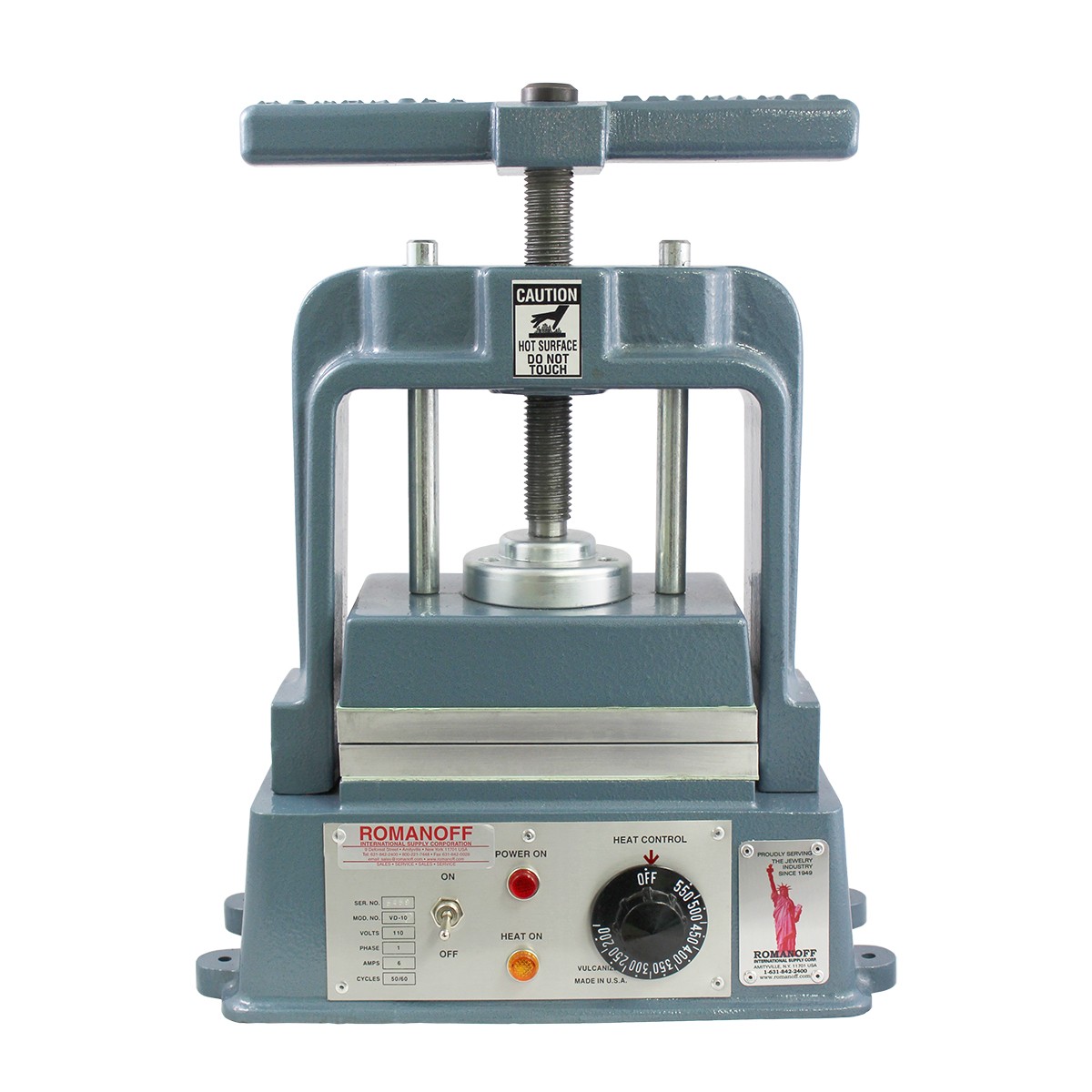

Romanoff table top vulcanizers feature a heavy–duty aluminum cast construction, accurate thermostat, heavy guide posts to insure a perfect alignment of top and bottom plates, on-off switch with separate pilot light, thermostat pilot indicating light, a 1” diameter pressure screw and a bar type handle which allows for maximum pressure on the mold.

The standard vulcanizer can hold two average size molds, and the deluxe vulcanizer holds four.



Standard Table-Top Vulcanizer (110V)
(73-047)

Standard Table-Top Vulcanizer (220V)
(73-047A)

Voltage 110V 220V
Dimensions (WxDxH) 14.5" x 7" x 26" 14.5" x 7" x 26"
Maximum Temperature 550°F (288°C) 550°F (288°C)
Maximum Opening 3" 3"
Platen Size (WxD) 8" x 5" 8" x 5"
Weight 48lbs 48lbs

Product Manual
