Yasui K3 UP Gold Casting Machine

SKU

79-300-K3UP

Skip to the end of the images gallery

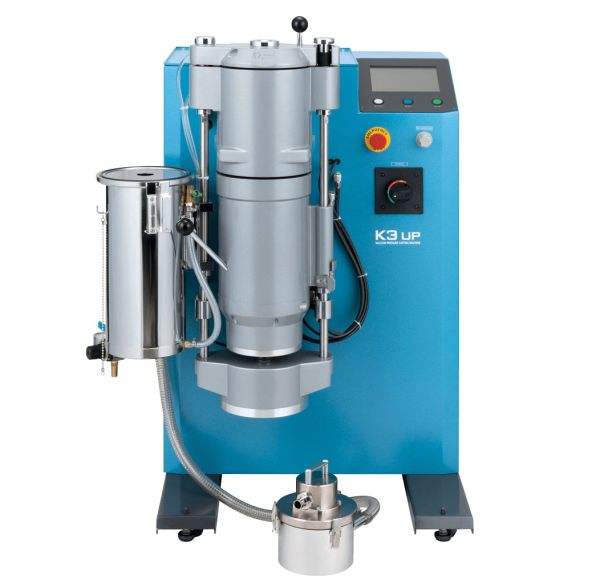

main product photo

Skip to the beginning of the images gallery

$0.00

K3 UP
Brand	Yasui
Model	K3 UP
Power	380VAC +/-10%, 50/560 hZ
Temperature Max	1200°C
Thermocouple Max Temperature	K-Type up to 1200°C R-Type up to 1450°C
Training	Technical Training & After Sales Support Available
Casting Volume	90cc (0.9kg 18kt) Crucible P/n 79-303-K3
Compatile Flasks (D X H)	125mm x 230mm Part # 79-303-K3
Machine Dimensions (L x W x H)	721 W x 753 D x 1201 H mm (29" L x 30" W x 48" H)
Crated Dimensions (L x W x H)	1219 x 1066 x 1320 mm 48 x 42 x 52 " inches
Crated Weight	272 kg (600 lbs.)
Uncreated Weight	190kg (418.8 lbs.)
Country of Origin	Japan

*** Requires Step Up Transformer if 380V is not available: 79-300-K3UPX

`

Request Pricing

Categories: Yasui, Casting Machines, Gold & Silver Casting Machines

K3 UP – Save TIME and GOLD

Advantages of K3 UP

K3 UP vacuum pressure machine by YASUI is your next machine to create Quality.

After mode without oxidation
Variable heat for gold loss
Extra mixing for good segregation of gold
Good melting speed
De-Gas – with good filling pieces
Precise double-needle gauge with improved pressure sensing
Easy to maintain
Accurate pressure timing
Self-diagnosis – P.I.D auto-tuning
Easy touch operation with useful parameter screen
Memory of parameter for best casting

*** Requires Transformer: 79-300-K2-8X


Specification	K3 UP	K2 NEXT 10KW
SKU#	79-300-K3UP	79-300-K210KW
Power Source	380 VAC +/- 10%, 50/60hZ 3-Phase, 5.5 KVA	380V +/-10%, 50/60Hz 3 phase, 6.5KVA (5KW) or 380V +/-10%
Oscillation Power	4kw	10kw
Uncrated Weight	185kg (407 lbs.)	190 kg (420 lbs.)
Uncrated Dimenions	29" L x 30" W x 48" H	29" L x 30" W x 48" H
Max Flask Size	Standard 125mm dia. x 230 mm(H) (5" dia. x 9" (H) inches)	Standard: 125mm dia.x 230mm (H) (5"dia. x 9"(h) inches) (Optional): 125mm dia. x 300mm(H) (5"dia. x 11.8"(h) inches)
Crucible Volume	90cc (0.9kg 18kt) Crucible P/n 79-303-K3	90cc (0.9kg 18kt) Crucible P/n 79-303-K3
Max Casting Amount	60cc (0.6kg 18kt)	150cc (1.5kg 18kt)
Standard Temperature	Standard 1200°C Optional R-Type 1450°C	Standard 1300°C R TYpe 1450 °C K Type 1200 °C
Max Pressure	0.3 MPa	0.3 MPa
Replacing Gas	Argon Gas 0.7MPa / Over 120 Liters per min.	Argon Gas 0.7MPa / Over 120 Liters per min.
Program Memory	100 Memories
Cooling Water	Tap water direct cooling system more than 3L/min, Average 50-60PSI and water Temp. 70-75°F	Tap water direct cooling system more than 3L/min, Average 50-60PSI and water Temp. 70-75°F
Casting Systems	Vacuum Pressure	Casting System
Alarm	Digital induction Auto diagnosis	Digital induction Auto diagnosis
Vacuum Pump	Minimum 11cfm/ minute	Minimum 11cfm/ minute

More Information

OEM Parts	No
Packing Qty	Request Pricing
