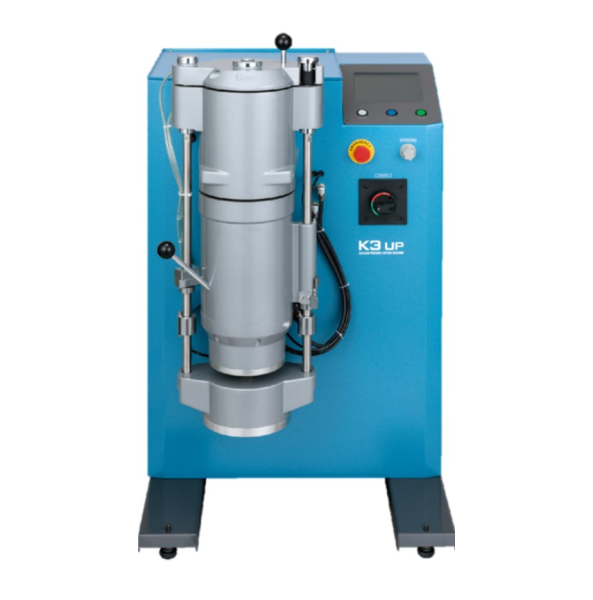

Yasui K3 UP Gold Casting Machine

SKU
79-300-K3UP
Link Copied to Clipboard
main product photo
$0.00
K3 UP
Brand Yasui
Model K3 UP
Power  380VAC +/-10%, 3-ph
220V with Step Up Transformer
Thermocouple Temperature
 Standard K-Type 1200°C
Optional R-Type 1450°C
Training Technical Training & After Sales Support
Max. Crucible Capacity 90cc (0.9kg 18kt)
Max. Flask Size (W X H) 125 x 230mm
Machine Dimensions
(L x W x H)		 721 x 753 x 1201 mm
29 x 30 x 48" inches
Crated Dimensions
(L x W x H)
 1219 x 1066 x 1320 mm
48 x 42 x 52" inches
Crated Weight 272 kg (600 lbs.)
Uncrated Weight 190kg (418.8 lbs.)
Country of Origin Japan



*** Requires Step Up Transformer if 380V is not available: 79-300-K3UPX
Link Copied to Clipboard
Request Pricing
Categories: Yasui, Casting Machines, Gold & Silver Casting Machines

K3 UP – Save TIME and GOLD

Advantages of K3 UP

K3 UP vacuum pressure machine by YASUI is your next machine to create Quality.

  • After mode without oxidation
  • Variable heat for gold loss
  • Extra mixing for good segregation of gold
  • Good melting speed
  • De-Gas – with good filling pieces
  • Precise double-needle gauge with improved pressure sensing
  • Easy to maintain
  • Accurate pressure timing
  • Self-diagnosis – P.I.D auto-tuning
  • Easy touch operation with useful parameter screen
  • Memory of parameter for best casting


Optional Shot Maker Available For Yasui K3 UP Casting Machine
P/n 79-300-SM3
Shot Maker Accessory for Yasui K3 UP Casting Machines

Yasui Logo Yasui K3 UP Gold Casting Machine Yasui K3 UP Gold Casting Machine
Specification K3 UP K2 NEXT 10KW
SKU#
 79-300-K3UP
79-300-K210KW
Power Source 380 VAC +/- 10%
3-Phase, 5.5 KVA		 380V +/-10%,
3 phase, 10 KVA
Oscillation Power
 4kw 10kw
Uncrated Weight 185kg (407 lbs.) 190 kg (420 lbs.)
Uncrated Dimenions   29" L x 30" W x 48" H  29" L x 30" W x 48" H
Max. Flask Size Standard
125mm dia. x 230 mm(H)
(5" dia.  x 9" (H) inches)		 Standard:
125mm dia.x 230mm (H)
(5"dia.  x 9"(h) inches)
(Optional):
125mm dia. x 300mm(H)
(5"dia.  x 11.8"Max(h) inches)
Max. Crucible Volume 90cc (0.9kg 18kt)

150cc (1.5kg 18kt)
Standard Temperature Standard 1200°C
Optional R-Type 1450°C 		 Standard 1300°C
R TYpe 1450 °C
K Type  1200 °C
Max Pressure 0.3 MPa 0.3 MPa
Replacing Gas Argon Gas 0.7MPa / Over 120 Liters per min.
Program Memory 100 Memories
Cooling Water Tap water direct cooling system more than 3L/min, Average 50-60PSI and water Temp. 70-75°F
Vacuum Pump Minimum 11cfm/ minute
OEM Parts No
Packing Qty Request Pricing
