Yasui RFID Mold Reader

Link Copied to Clipboard
  • Brand: Yasui
  • Country of Origin: Japan
Link Copied to Clipboard
Priced individually


The new Yasui mold clamp system uses RFID Technology (Radio Frequency Identification) to program small microchips that are embedded into the rubber molds. Because the operator no longer has to manually program the clamping system, the automatic reader system increases wax model productivity. It's as easy as just waving the rubber mold over the reader. This new technology allows the operator to program the correct parameters for each specific mold; including mold clamping and forward pressure, hold and vacuum time, and primary and secondary injection time.

Designed for

  • Yasui Advanced Auto Clamp ICIS System (P/N 74-266-ICC)
  • Yasui ICIS Memory Tags (P/N 74-266-ICIX)

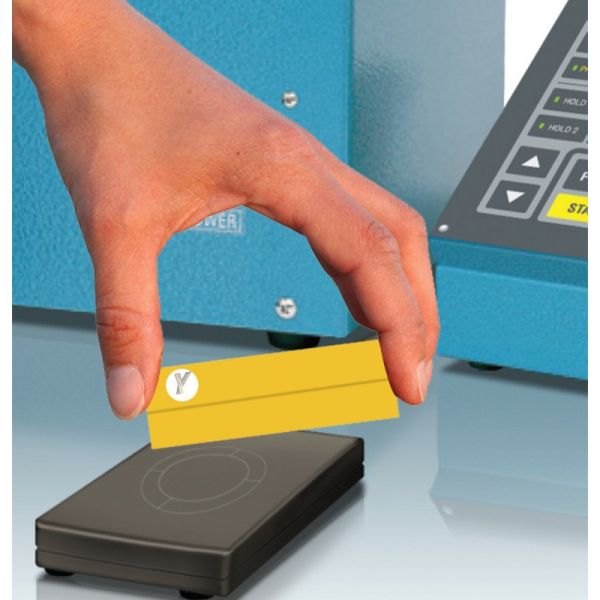

  • Simply wave the mold with the memory chip over this reader and the parameters will automatically be updated on the pressure controller
  • Capable of operating in temperatures up to 200C
  • Made of flexible material so it does not crack and has superior impact absorption
  • Excellent miscibility allows IC Tags to be bonded to silicone rubber molds by standard adhesive
OEM Parts Yes
Packing Qty Priced individually
