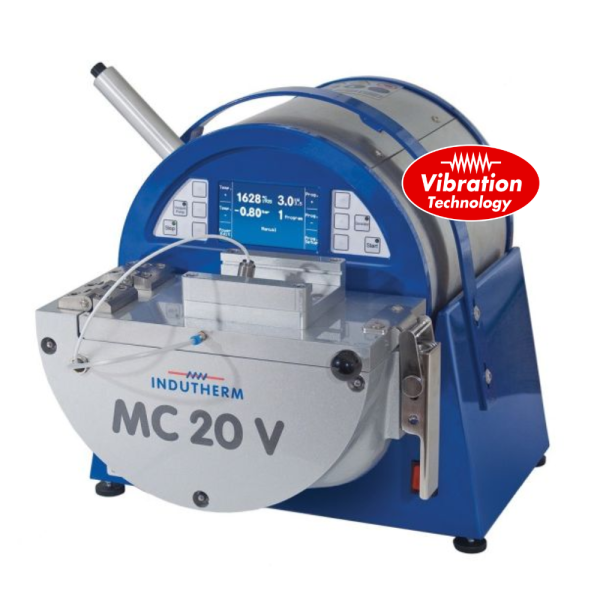

Indutherm MC20V Casting Machine with Optical Pyrometer


SKU
78-2100

  • Brand : Indutherm
  • Model or style no. : MC20V
  • Power : 3.5 kW / 230 V single phase 16 A, 50 or 60 Hz
  • Temperature Max : 2000°C
  • Casting Volume : 100g Au 18 ct & 110g Steel / 200g Pt
  • For Use of Flasks : ø 30/50/65/80 mm x 80mm h
  • Dimensions : 16"D x 16"W x 17.5"H
  • Weight : 60 lbs


QuantityPrice
1 to 1 Request Pricing

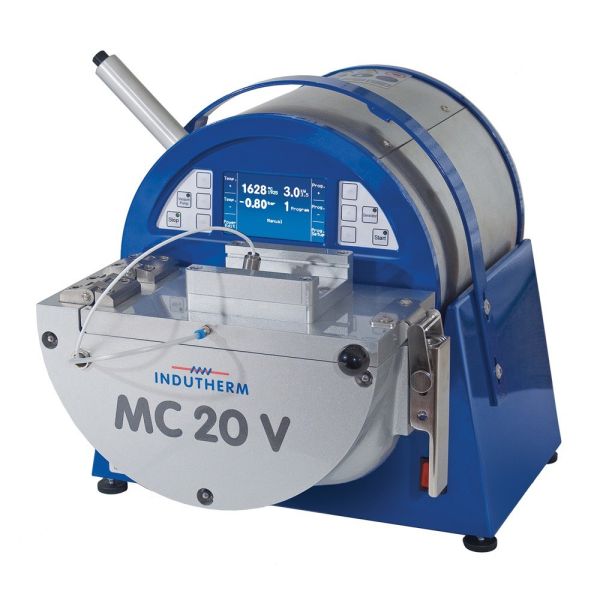

Indutherm MC20V Casting Machine with Optical Pyrometer
Indutherm MC20V Casting Machine with Optical Pyrometer Indutherm MC20V Casting Machine with Optical Pyrometer

Rapid and Simple Casting Suitable for All Metals

The MC20V is equipped with a latest generation induction generator, developed especially for this housing design and with high operating efficiency. Convenient, high precision control is provided via a new operating system, with an LCD display, full text display and program control.

For the first time, our multi-award winning and patent-pending vibration system is now available in a compact casting machine. Using vibration when casting ensures better form filling, creating casts with greater, more consistent densities, higher elasticity and greatly reduced porosity. Vibration technology is a compelling alternative to the frequently used and relatively delicate centrifugal systems, especially when casting platinum or palladium.

The MC20V is designed based on the same tilting principle as the MC16. However it is systematically designed for intricate casting projects in continuous operation in larger foundries.



Easy and Effcient

High quality LCD display allows for easy programming. Effecient use of consumable materials leads to cost savings over time.

Vacuum-Controlled Melting Atmosphere

Melting under vacuum or inert gas to prevent oxidation. Thorough through-mixing of molten metals using low-frequency induction tuning. 3.5 kW induction generator for quickly reaching the melting temperature.

Versatile Uses

This machine features precise thermocouple temperature measurement of gold & silver. Allows for small batch Platinum casting as well as Steel.

COMPACT SIZE FOR COMPACT PROJECTS

Measuring under two feet in all dimensions and weighing just 60 lbs, this casting machine is perfect for tight spaces and an economical option for small to medium projects. An excellent solution for studios and goldsmith's workshop with limited space.


FAST AND EFFICIENT

Quick shots by use of standard investment material in less than 4 hours, on "speed" investment material in less than 2 hours from wax piece to casting. Vibration technology ensures complete dense castings.

HIGH QUALITY MACHINE FOR HIGH QUALITY RESULTS

Top quality form filling using overpressure of up to 2 bars (casting under vacuum also possible). Machine can be used to cast rolling blanks for platinum processing in copper molds.





CASTING MACHINE PROPERTIES

SKU: 78-2100
Temperature Measurement:     Thermocouple type N up to 1300° C and Optical Pyrometer up to 2000° C
Casting Volume: 100g Au 18 ct / 110g Steel / 200g Pt
Flask Size: 30/50/65/80 mm D x 80 mm H
Control Panel: LCD Display, full text readout
Inert Gas Supply: Argon or Nitrogen
Cooling System:
Water
Vacuum Function: Automatic
Interface and Diagnostic System:
RS 232
Function Washing: Inert Gas
Overpressure after Pouring:
Automatic





TECHNICAL SPECIFICATIONS

Dimensions (DxWxH): 16" x 16" x 17.5" (40.6 cm x 40.6 cm x 44.5 cm)
Weight:  60 lbs (27.2 kg)
Electrical Connection: 230 V single phase 16 A, 50 or 60 Hz
Maximum Power: 3.5 kW
Maximum Temperature:
2000°C
